| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Features | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| SVHC Present | |
| Static Pressure | |
| Tape & Reel | |
| Termination | |
| Voltage | |
| Weight | |
| Width |

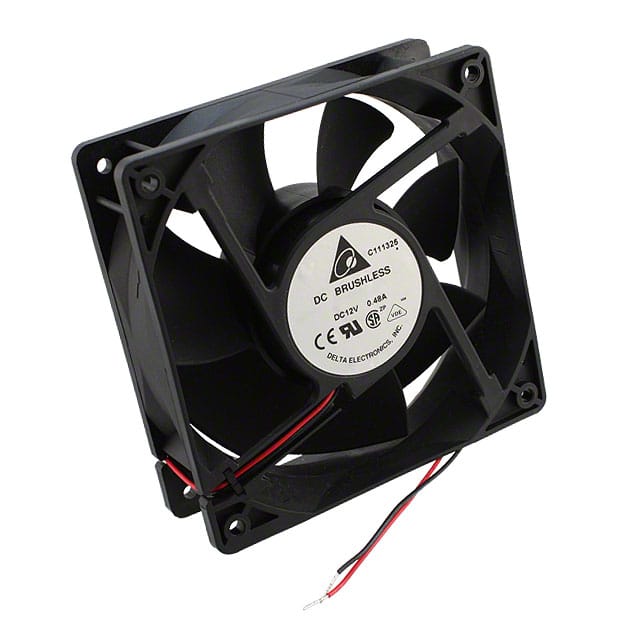

The Delta Electronics AFB1212HE is a 120mm x 120mm x 38mm DC brushless axial fan designed for reliable cooling in a variety of electronic and industrial applications. It operates at a nominal voltage of 12VDC with a power consumption of 3.84W, delivering an airflow of 105.9 CFM (2.97 m³/min) and a static pressure of 74.7 Pa (0.300 in H2O). The fan spins at 2600 RPM and generates a noise level of 41.0 dB(A).
Constructed with a ball bearing system, the AFB1212HE offers enhanced durability and a longer operational life compared to sleeve bearing fans. It includes locked rotor protection to prevent damage in case of mechanical blockage. The fan is approved by CE, CSA, UL, and VDE, and is rated for operation in ambient temperatures from -10°C to 60°C.
The fan features two wire leads for simple power connection and weighs approximately 256 grams. Its standard 120mm frame size makes it compatible with common mounting patterns for equipment cooling, such as in power supplies, telecommunications gear, and industrial control panels.
| Qty | Low | High |
|---|---|---|
| 540+ | $13.71 | $13.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AFB1212HE operates at a nominal voltage of 12 VDC.
The fan delivers 105.9 CFM (2.97 m³/min) of airflow.
The noise level is 41.0 dB(A).
It uses a ball bearing system.
The operating temperature range is -10 to 60 °C.
RoHS status is listed as RoHS3 Compliant, but this is unverified and should be confirmed with the manufacturer.
It is approved by CE, CSA, UL, and VDE.
