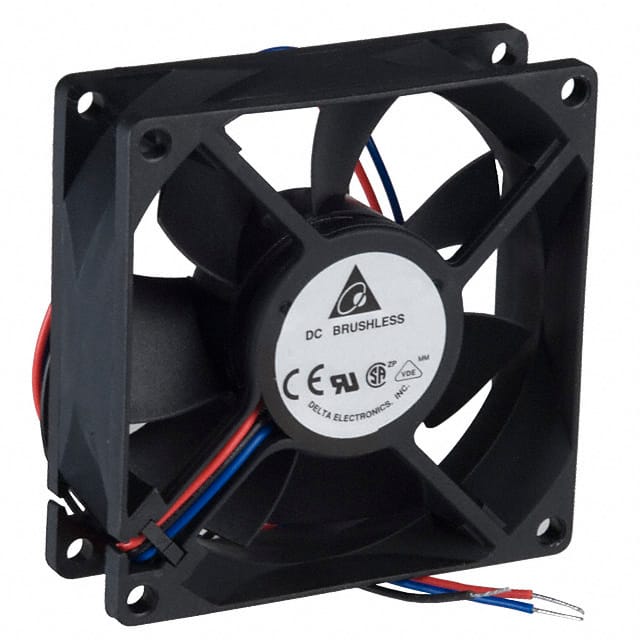

The Delta Electronics AFB0824SH-F00 is a DC brushless tubeaxial fan designed for efficient thermal management in a compact 80mm x 25.4mm package. Operating at 24VDC with a power consumption of 3.84W, this fan delivers an airflow of 46.6 CFM (1.30 m³/min) and a static pressure of 0.267 in H2O (66.5 Pa) at a rated speed of 4000 RPM.
The fan incorporates a ball bearing system for extended reliability and durability. It features locked rotor protection and a speed sensor (tach) output, making it suitable for applications requiring speed monitoring and protection. The 3-wire lead termination simplifies integration into control circuits.
With an operating temperature range of -10°C to 60°C, the AFB0824SH-F00 is suitable for a variety of environments. The fan is approved to CE, CSA, UL, and VDE standards, ensuring compliance with major safety regulations. Its compact size and performance characteristics make it ideal for cooling electronic enclosures, telecommunications equipment, and industrial control systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $13.00 | $13.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AFB0824SH-F00 operates at 24VDC.
It provides 46.6 CFM (1.30 m³/min) airflow and 0.267 in H2O (66.5 Pa) static pressure.
The operating temperature range is -10°C to 60°C (14°F to 140°F).
The fan is marked as RoHS3 compliant, but this status is unverified.
It uses a ball bearing and is a tubeaxial fan.
The noise level is 40.0 dB(A).
It measures 80mm x 80mm with a 25.4mm width and weighs 80g (0.176 lb).
