| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Features | |
| Lead Style | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| SVHC Present | |
| Static Pressure | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage | |
| Weight | |
| Width |

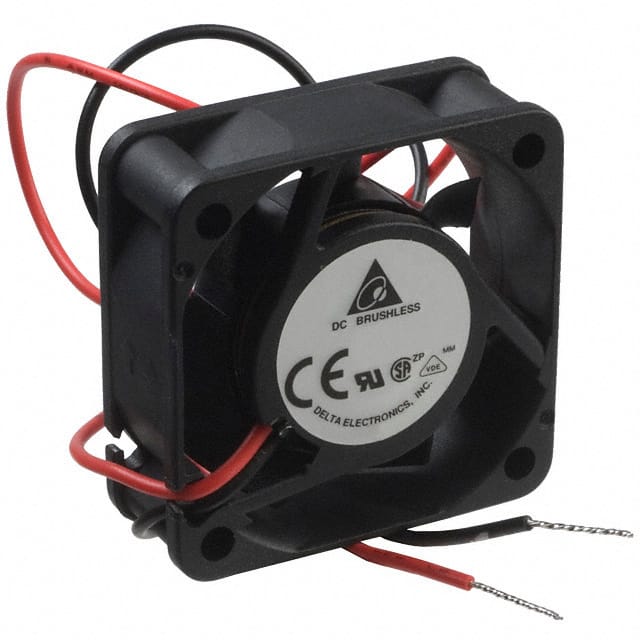

The AFB0412HHB is a DC brushless fan from Delta Electronics, part of the AFB series. It operates at 12VDC with a power consumption of 1.56W. The fan is tubeaxial type with ball bearings for reliability. It provides airflow of 0.322 m³/min (11.5 CFM) and static pressure of 89.4 Pa. Noise level is 32 dB(A). Operating temperature range is -10°C to 70°C. It features locked rotor protection. Approvals include CE, CSA, UL, VDE. Termination is 2 wire leads. Package is square 40mm L x 40mm H with 15mm thickness. Weight is 25.85 g. This fan is suitable for cooling applications in electronics, telecommunications, and industrial equipment where compact size and reliable performance are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.64 | $14.64 |
| 10+ | $12.50 | $12.50 |
| 25+ | $12.00 | $12.00 |
| 50+ | $11.31 | $11.31 |
| 100+ | $10.41 | $10.41 |
| 250+ | $10.11 | $10.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 VDC.
40mm L x 40mm H with a thickness of 15.00 mm.
-10°C to 70°C.
It is listed as RoHS3 Compliant, but this status is unverified.
0.322 m³/min (11.5 CFM).
32.0 dB(A).
Ball bearing.
