| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,020 pcs
|
2020 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

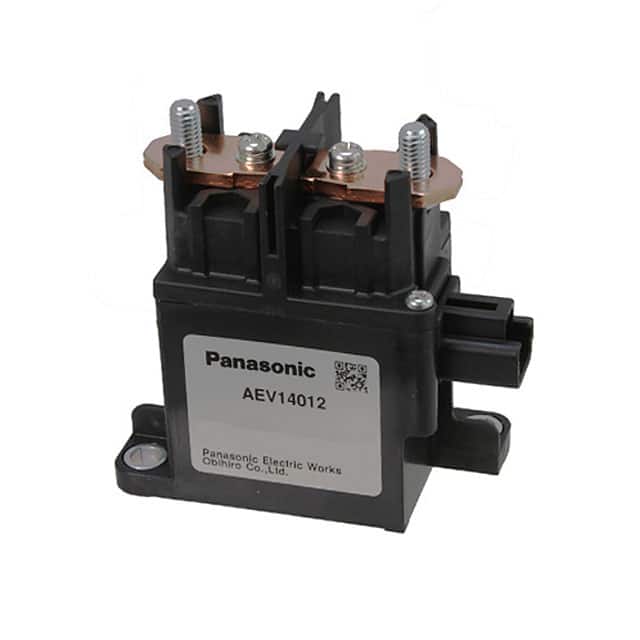

The Panasonic Electric Works AEV14012 is an automotive relay designed for robust performance. It features a Single Pole Single Throw Normally Open (SPST-NO) contact form, capable of handling a significant current rating of 120A.
The relay operates with a 12VDC coil voltage and requires a must-operate voltage of 9 VDC, with a must-release voltage of 1 VDC. Its switching voltage is rated at 450VDC nominal. The coil current is 353 mA, drawing 4.2W of power.
Designed for practical integration, the AEV14012 utilizes a chassis mount type and stud termination style. It operates within a temperature range of -40°C to 80°C. The relay has an operate time of 50 ms and a release time of 30 ms.
This component is RoHS compliant and falls under MSL 1 (Unlimited) and REACH Unaffected status. It is suitable for various automotive applications requiring reliable switching capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 12 VDC.
The contact rating is 120 A.
The switching voltage is 450 VDC nominal.
The operating temperature range is from -40°C to 80°C.
It uses chassis mount with stud termination.
Yes, it is RoHS compliant, though this status is unverified.
