| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Weight | |
| Width |

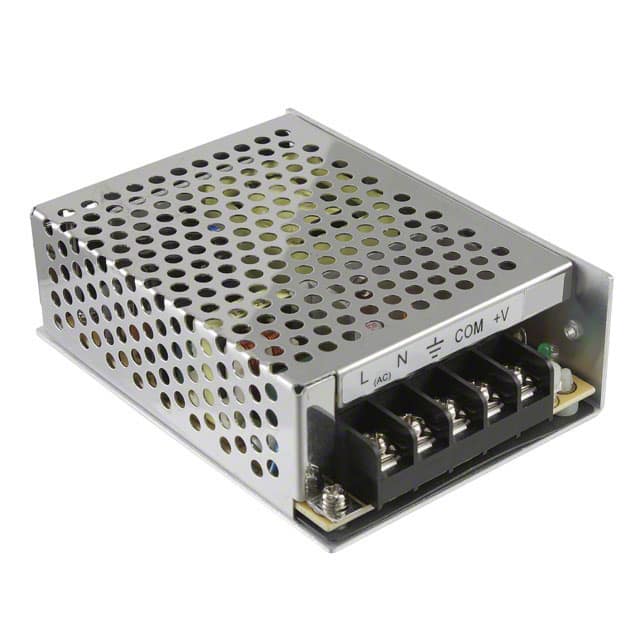

The Triad Magnetics AEU65-150 is a versatile AC/DC power supply designed for industrial and telecommunications applications. It delivers a single 15VDC output with a maximum continuous current of 4.33A, providing up to 65W of power.
This enclosed power supply features a universal input voltage range of 90-264VAC and offers adjustable output voltage between 14.25V and 15.75V. Key electrical specifications include high efficiency up to 87.0%, ±0.5% line and load regulation, and low ripple and noise of 120mVp-p.
Designed for reliability, the AEU65-150 includes over-current and over-voltage protection. Its dimensions are 110.0mm x 78.0mm x 35.0mm, making it suitable for chassis mounting. The unit operates within a temperature range of -20°C to 50°C at full load and is cooled by natural convection.
The AEU65-150 has a nominal output voltage of 15.0VDC with a tolerance of ±1.5%.
The maximum output current for the AEU65-150 is 4.33A under convection cooling.
The AEU65-150 accepts an input voltage range of 90-264VAC.
The operating temperature range is -20°C to 50°C at full load.
The dimensions are 110.0mm x 78.0mm x 35.0mm.
The efficiency is typically 87.0%.
