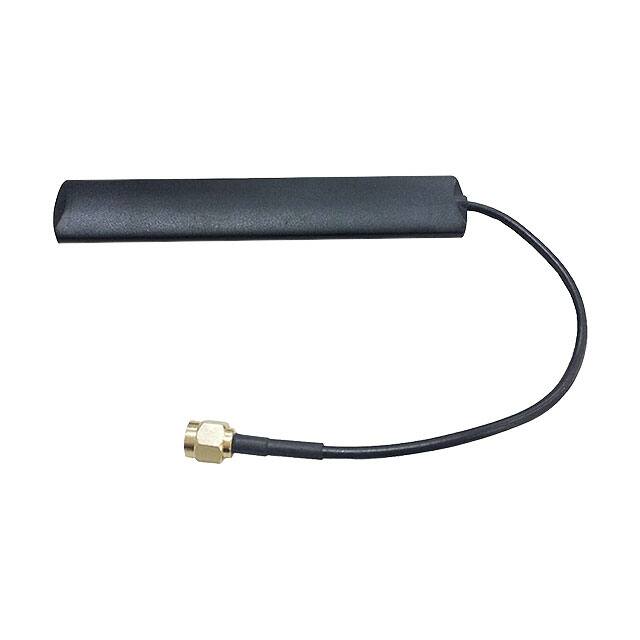

Name: AETC01M02XS-SS
SKU: AETC01M02XS-SS

Categories

Category	RF Antennas
Manufacturer Name	Abracon LLC
Antenna Type	Whip, Straight
Applications	4G, 5G, Bluetooth, LTE, Wi-Fi, WLAN, Zigbee聶
Features	Cable - 1.5m
Frequency (Center	788.5MHz, 2.071GHz, 4.575GHz, 6.5GHz
Frequency Group	Wide Band
Frequency Range	617MHz ~ 960MHz, 1.452GHz ~ 2.69GHz, 3.3GHz ~ 5.85GHz, 5.85GHz ~ 7.15GHz
Gain	1dBi, 4dBi, 3dBi, 3dBi
Height (Max)	0.213" (5.40mm)
Mounting Type	Surface Mount
Number of Bands	4
Power	500 mW
RF Family	802.15.4, Bluetooth, Cellular, WiFi
Return Loss	12dB
Termination	SMA Male
VSWR	2.5, 2, 2, 2.5

AETC01M02XS-SS
