| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

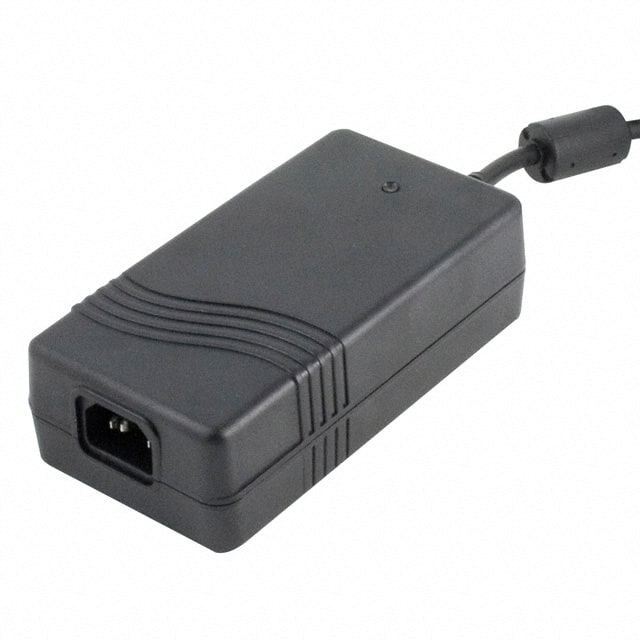

The XP Power AEL80US12 is an 80W AC-DC power supply designed for ITE (Commercial) applications. It provides a stable 12V DC output at 6.66A, with a total regulation of 5% and an efficiency of 85% at full load.
This power supply operates within a wide input voltage range of 90-264 VAC and a frequency of 47-63 Hz. It features an IEC 320-C14 input connector and a DIN 5-pin output connector. The unit has a compact desktop form factor (Class I) and can operate in temperatures ranging from -20°C to 60°C.
Key compliance features include Energy Efficiency Level V, CEC 2008 and EISA 2007 compliance, Limited Power Source Approval, and China Compulsory Certification (CCC) Qualification. It also meets RoHS3, REACH Unaffected, and MSL 1 standards.
The AEL80US12 provides a 12V DC output at 6.66A.
The AEL80US12 has a power rating of 80W.
The AEL80US12 uses an IEC 320-C14 input connector.
The AEL80US12 operates in a temperature range of -20°C to 60°C.
The AEL80US12 is RoHS3 Compliant.
The MSL for the AEL80US12 is Level 1.
