| Category | |
| Manufacturer Name | |
| Applications | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Width |

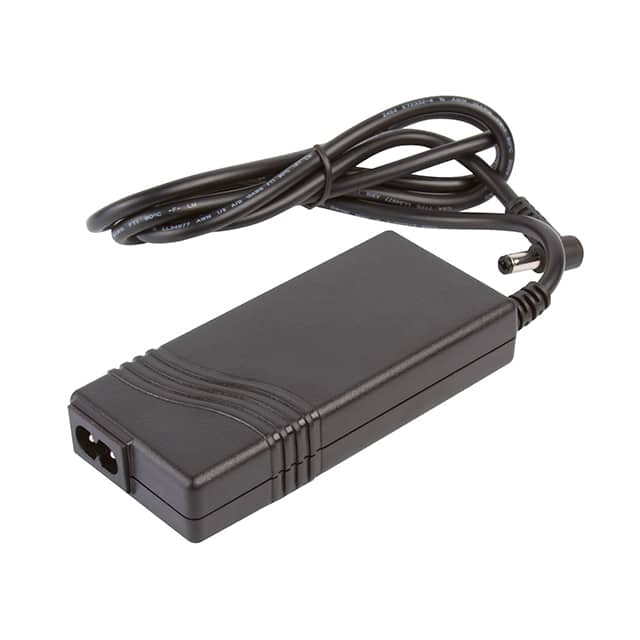

The XP Power AED36US05 is a versatile AC-DC desktop power supply designed for ITE applications. It delivers a stable 5V output with a maximum current of 4A, providing up to 20W of power.
This adapter features a universal input voltage range of 90-264 VAC and operates at a switching frequency of 60 kHz. Key electrical specifications include 85% typical efficiency, ±1% line regulation, and ±2% initial set accuracy. It offers continuous short circuit protection and overvoltage protection up to 125% of the nominal output.
The unit is housed in a compact, low-profile case with dimensions of 110.0mm x 50.0mm x 20.0mm. It utilizes an IEC 320-C8 input connector and a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D.). The adapter is designed for desktop use and meets Class II insulation requirements.
Environmental considerations include an operating temperature range of 0°C to 60°C and compliance with various EMC and safety standards such as EN55022 Class B and EN60950-1.
90-264 VAC.
5V at 20W.
110.0mm x 50.0mm x 20.0mm.
0°C to 60°C.
EN60950-1 and UL60950-1.
Yes, it meets EN55022 Class B conducted and radiated emissions.
Barrel plug, 2.5mm I.D. x 5.5mm O.D. x 12.0mm, positive center.
