| Category | |
| Manufacturer Name | |
| Applications | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Width |

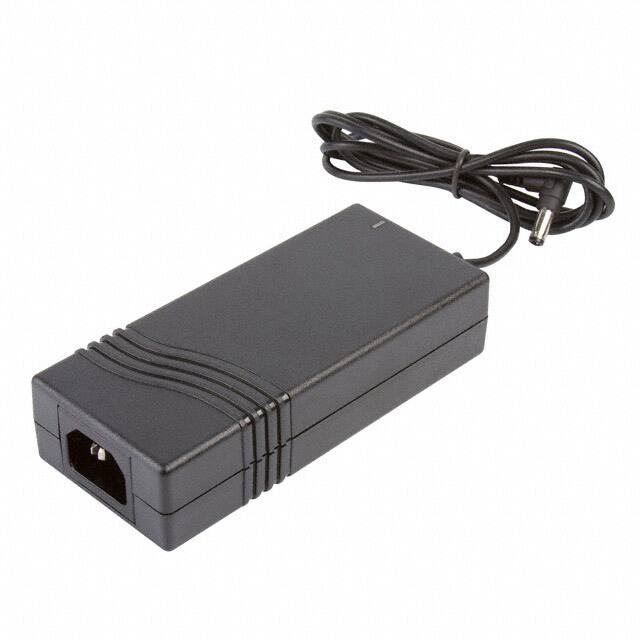

The XP Power AEB70US19 is an AC/DC desktop adapter designed for ITE (Commercial) applications. It provides a 72W output power with a 19V output voltage and a current rating of 3.7A.
This adapter features a universal input voltage range of 90-264 VAC and operates at a frequency of 47-63 Hz. It complies with CEC2008 and EISA2007 standards and achieves Level V energy efficiency. The input connector is an IEC 320-C14, and the output connector is a Barrel Plug R/A with specific dimensions.
Key electrical specifications include a low no-load power consumption of less than 0.5W, line regulation of ±1%, and load regulation as specified in the tables. It offers overvoltage protection, overload protection in hiccup mode, and continuous short circuit protection.
Mechanically, the adapter has dimensions of 132.0mm x 58.0mm x 30.5mm. It operates within a temperature range of 0°C to 60°C and has a 3-year warranty. Safety approvals include EN62368-1 and UL62368.
The AEB70US19 adapter has an output voltage of 19V.
The AEB70US19 adapter has a maximum power output of 72W.
The AEB70US19 adapter accepts a universal input voltage range of 90-264 VAC.
The AEB70US19 uses an IEC 320-C14 input connector.
The AEB70US19 operates within a temperature range of 0°C to 60°C.
Yes, the AEB70US19 meets CEC2008 & EISA2007 standards and is rated Level V for energy efficiency.
