| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Width |

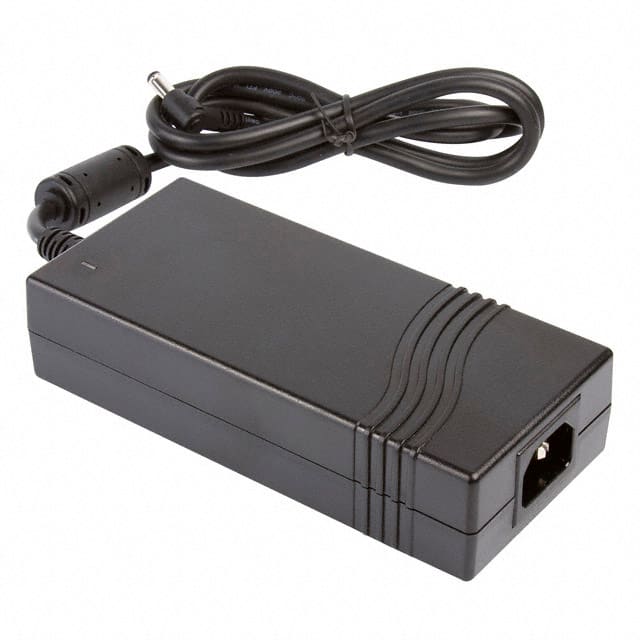

The XP Power AEB100PS12 is a versatile AC-DC desktop power adapter designed for ITE (Commercial) applications. It delivers a robust 100W of power with a stable 12V output.
This adapter features a universal input voltage range of 90-264 VAC and operates at a frequency of 47-63 Hz. It boasts high power density and meets CEC2008 and EISA2007 energy efficiency standards, achieving Level IV efficiency. The unit is equipped with an IEC 320-C14 input connector and a barrel plug output connector (2.5mm ID x 5.5mm OD).
Key electrical specifications include a maximum input current of 1.85A for the AEB100 model, and it offers protections such as overvoltage, overload (hiccup mode), and short circuit.
Designed for reliability, the AEB100PS12 has a 3-year warranty and an MTBF rating of over 150 kHrs for the AEB100 model. It operates within a temperature range of 0°C to +60°C and complies with various EMC and safety standards including EN55022 Level B and EN62368-1.
The output voltage is 12V.
The maximum power output is 100W.
The input voltage range is 90-264 VAC.
The operating temperature range is 0°C to +60°C.
Yes, it is RoHS3 Compliant.
