| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Current | |
| Delay Time | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

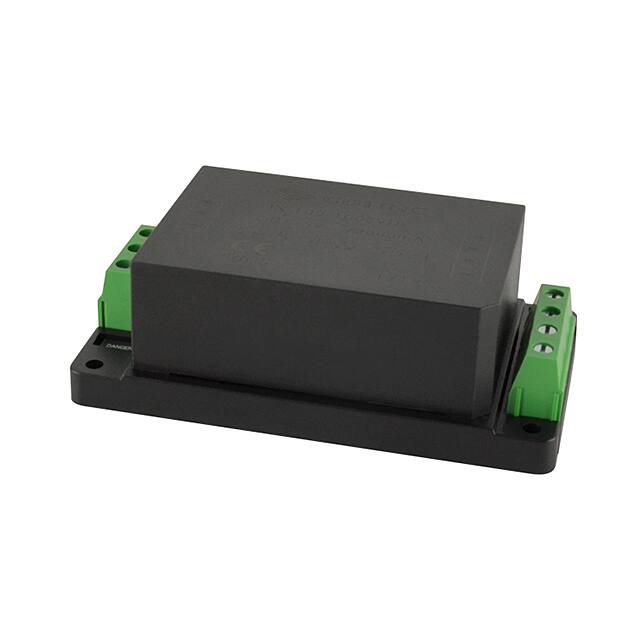

The CUI Inc. AE5-EW-S5-T is a robust DC-DC converter designed for demanding applications. It delivers 5 watts of power with a stable 5V output voltage and can accept an extra-wide input voltage range from 100 to 1000 Vdc.
Key features include 4,000 Vac isolation, providing enhanced safety and protection. The converter operates reliably within a temperature range of -40 to +70°C, with derating curves available for specific conditions. It also includes Over Voltage Protection (OVP) and continuous output short circuit protection with automatic recovery.
Designed for easy integration, this model is chassis mounted. Its specifications meet EN 62109 approval, and it complies with RoHS 2011/65/EU directives. The unit offers an efficiency of 72% at nominal input and full load, with a switching frequency of 75 kHz.
With a Mean Time Between Failures (MTBF) of 300,000 hours calculated per MIL-HDBK-217F at 25°C, the AE5-EW-S5-T is built for long-term reliability in industrial and commercial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 100 Vdc to 1000 Vdc.
The output voltage is 5 Vdc.
The maximum output current is 1.0 A.
The typical efficiency is 72%.
The isolation voltage is 4000 Vac.
The operating temperature range is -40°C to 70°C.
RoHS3 compliance status is unverified.
