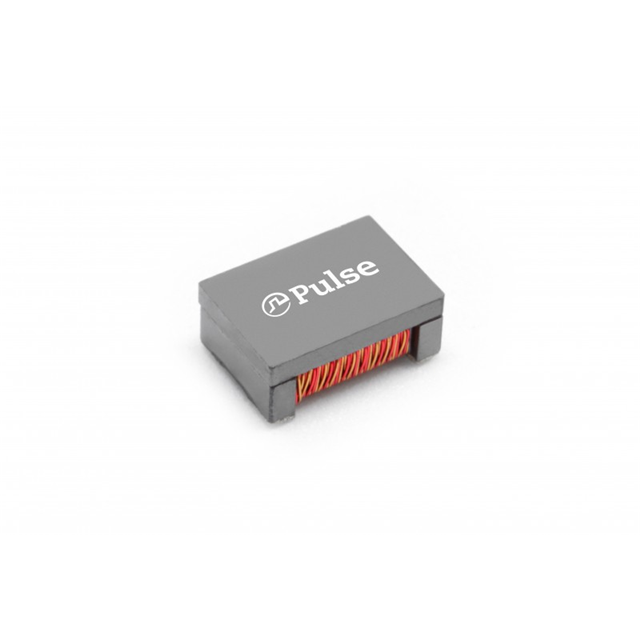

The AE3006 is a surface mount common mode choke from Pulse Electronics designed for signal line filtering applications. It features a 2-line configuration with a maximum current rating of 450mA, making it suitable for suppressing common mode noise in compact electronic circuits.
This component is qualified to AEC-Q200, the automotive industry's stress test qualification standard for passive components, ensuring reliability in harsh environments. It operates over a wide temperature range of -40°C to 125°C, accommodating both extreme cold and high-temperature conditions found in automotive and industrial settings.
The AE3006 is housed in a horizontal, 4 PC pad package measuring 6.50mm x 4.50mm with a maximum height of 2.75mm, enabling space-efficient designs on densely populated PCBs. Its surface mount construction supports automated assembly processes, reducing manufacturing costs and improving throughput.
| Qty | Low | High |
|---|---|---|
| 2,000+ | $2.86 | $2.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AE3006 operates from -40°C to 125°C.
Yes, the AE3006 is qualified to AEC-Q200.
The AE3006 has a maximum current rating of 450mA.
The AE3006 comes in a Horizontal, 4 PC Pad surface mount package.
The AE3006 is a 2-line common mode choke.
