| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,010 pcs
|
2010 pcs | On Request | 1 | 15 | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Axis | |
| Bandwidth | |
| Current | |
| Features | |
| Industrial Grade | |
| Long Life | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Range ° | |
| Sensitivity (mV | |
| Shock Survivability | |
| Type | |
| Voltage |
The ADXRS645HDYZ from Analog Devices is a high-performance angular rate sensor with excellent vibration immunity, suitable for high-temperature environments. It operates over a wide temperature range of -40°C to +175°C and features a measurement range of ±2000°/sec, which can be extended to ±5000°/sec with an external resistor.
This gyroscope utilizes a patented BiMOS surface-micromachining process for proven field reliability. Its advanced differential quad sensor design provides superior acceleration and vibration rejection. The output signal, RATEOUT, is a voltage proportional to the angular rate about the axis normal to the package lid. It requires a 5V single-supply operation and consumes 3.5 mA of current.

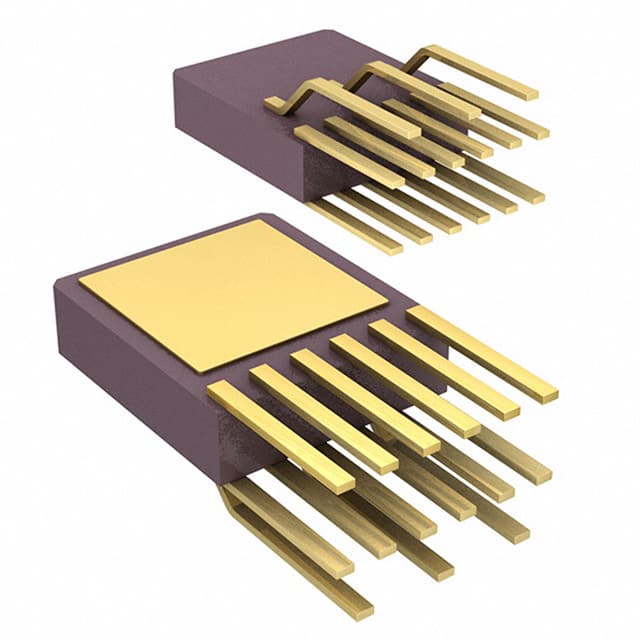

The ADXRS645HDYZ is available in a 15-lead tri-in-line package (15-TRIIP). It includes a temperature sensor output for compensation techniques and digital self-test inputs for verifying proper operation. Its robust design makes it suitable for demanding applications such as downhole measurements for geological exploration and severe mechanical environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 175°C.
The measurement range is ±2000°/sec.
It requires a supply voltage between 4.75V and 5.25V.
The ADXRS645HDYZ is available in a 15-TRIIP package.
Yes, it includes a temperature sensor output for compensation techniques.
The gyroscope has a powered shock survivability of 10,000 g.
