ADXL377BCPZ-RL7 The Analog Devices ADXL377BCPZ-RL7 is a 3-axis accelerometer measuring up to ±200g. It operates from a 1.8V to 3.6V supply and features adjustable bandwidth.
Mfr Part #:

ADXL377BCPZ-RL7

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices ADXL377BCPZ-RL7 is a 3-axis accelerometer measuring up to ±200g. It operates from a 1.8V to 3.6V supply and features adjustable bandwidth.
✓ Total Stock: 58 pcs
$ Price Range: $1.50

ADXL377BCPZ-RL7 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request 16+ On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADXL377BCPZ-RL7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Acceleration Range
Axis
Bandwidth
Features
Mounting Type
Operating Temperature
Operating Voltage
Output Type
Sensitivity (mV
Supplier Device Package
Supplier Package
Type
Voltage
View Similar Products (0)

ADXL377BCPZ-RL7 Description

Short technical summary and product information.

The ADXL377BCPZ-RL7 from Analog Devices is a compact, low-power, 3-axis accelerometer with signal-conditioned voltage outputs. It measures acceleration from motion, shock, or vibration with a full-scale range of ±200g.



This accelerometer offers adjustable bandwidth per axis, ranging from 0.5 Hz to 1300 Hz for the X and Y axes, and 0.5 Hz to 1000 Hz for the Z axis. It operates on a single supply voltage between 1.8V and 3.6V, consuming a typical current of 300 µA.

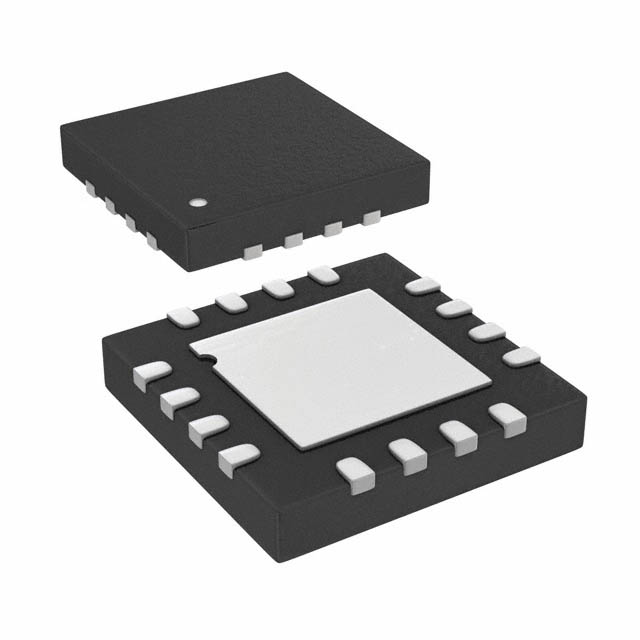

The device is housed in a small, low-profile 3 mm × 3 mm × 1.45 mm, 16-lead LFCSP package, suitable for surface mounting. It also boasts 10,000 g shock survival and excellent temperature stability.



Applications for the ADXL377BCPZ-RL7 include concussion and head trauma detection, as well as high force event detection.

ADXL377BCPZ-RL7 Quick Information

Product Type: Accelerometer
Canonical Name: ADXL377BCPZ-RL7 3-Axis Accelerometer
Subcategory: Motion Sensors

ADXL377BCPZ-RL7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

ADXL377BCPZ-RL7 Estimated Pricing

Qty Low High
1+ $1.50 $1.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADXL377BCPZ-RL7 Features

  • Measures acceleration in three axes.
  • Full-scale range of ±200g.
  • Adjustable bandwidth per axis.
  • Low power consumption of 300 µA.
  • Compact 3 mm x 3 mm LFCSP package.

ADXL377BCPZ-RL7 Applications

  • Used in vibration monitoring systems
  • Suitable for shock detection applications
  • Ideal for industrial motion sensing
  • Applied in automotive crash sensors

ADXL377BCPZ-RL7 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the acceleration range of the ADXL377BCPZ-RL7?

The acceleration range is ±200g.

What is the operating voltage for this accelerometer?

The operating voltage is 1.8V to 3.6V.

What are the available bandwidths for the ADXL377BCPZ-RL7?

The bandwidths are 0.5Hz to 1.3kHz for the X and Y axes, and 0.5Hz to 1kHz for the Z axis.

What type of output does the ADXL377BCPZ-RL7 provide?

It provides an analog voltage output.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What package is the ADXL377BCPZ-RL7 supplied in?

It is supplied in a 16-LFCSP-LQ (3x3) surface mount package.
