| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23,565 pcs
|
23565 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
12,500 pcs
|
12500 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Acceleration Range | |
| Axis | |
| Bandwidth | |
| Features | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Sensitivity (LSB | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Type | |
| Voltage |

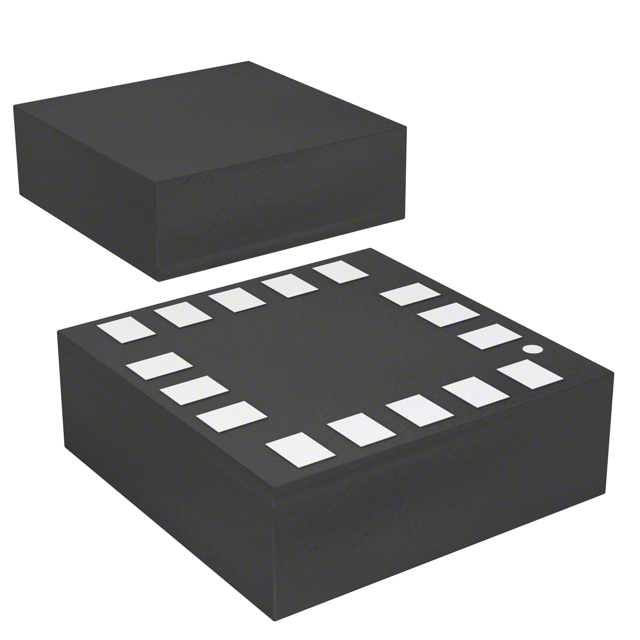

The ADXL362BCCZ-RL7 from Analog Devices is a micropower, 3-axis MEMS accelerometer designed for applications requiring high resolution and low power consumption. It operates with a wide supply voltage range of 1.6V to 3.5V and features an SPI digital interface for easy integration.
This accelerometer offers selectable measurement ranges of ±2g, ±4g, and ±8g, with a high resolution of 1 mg/LSB on the ±2g range. It boasts ultralow power consumption, drawing as little as 1.8 µA at 100 Hz ODR and 270 nA in motion-activated wake-up mode. Additional features include an on-chip temperature sensor, adjustable sleep/wake modes, and a deep embedded FIFO buffer to minimize host processor load.
The ADXL362BCCZ-RL7 is available in a compact 16-LGA package measuring 3 mm × 3.25 mm × 1.06 mm, suitable for surface mounting. Its low noise performance, down to 175 µg/√Hz, and versatile features make it ideal for battery-powered devices and motion-sensing applications.
Applications include hearing aids, home healthcare devices, motion-enabled power save switches, wireless sensors, and motion-enabled metering devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.43 | $11.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The selectable acceleration ranges are ±2g, ±4g, and ±8g.
The operating voltage range is 1.6V to 3.5V.
The operating temperature range is -40°C to 85°C.
It uses an SPI digital interface.
Yes, it includes an on-chip temperature sensor.
It is supplied in a 16-LGA package.
