| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| 10,000 g shock survival | |
| Acceleration Range | |
| Axis | |
| Bandwidth | |
| Built-in motion detection functions | |
| Embedded FIFO technology | |
| Features | |
| Flexible interrupt modes | |
| Interface Type | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Output Type | |
| Pb-Free/RoHS-Compliant | |
| Power Consumption | |
| Power Consumption (Typical) | |
| Resolution | |
| Sensitivity (LSB | |
| Small and thin | |
| Supplier Device Package | |
| Type | |
| Voltage |
The ADXL312ACPZ from Analog Devices is a small, thin, low-power, 3-axis digital accelerometer with high resolution, capable of measurements up to ±12g. It features user-selectable resolution and fixed 10-bit resolution, with full resolution increasing up to 13-bit at ±12g.
This accelerometer supports both SPI (3- and 4-wire) and I2C digital interfaces, making it versatile for various embedded systems. It includes built-in motion detection functions for activity and inactivity monitoring, and an embedded FIFO technology to minimize host processor load. The device operates over a wide temperature range of -40°C to +105°C.

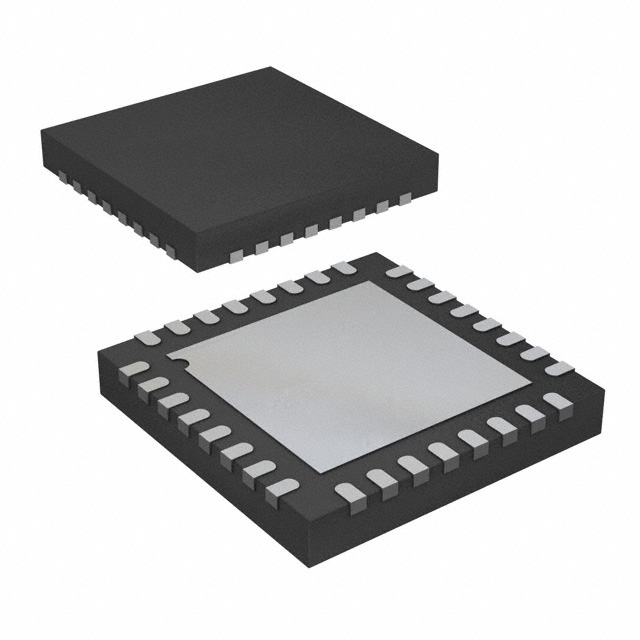

Packaged in a compact 5 mm × 5 mm × 1.45 mm LFCSP package, the ADXL312ACPZ is suitable for surface mount applications. Its ultralow power consumption, as low as 57 µA in measurement mode, makes it ideal for battery-powered devices. The selectable bandwidth and measurement ranges offer design flexibility.
Applications include car alarms, hill start aids, electronic parking brakes, and data recorders. It is qualified for automotive applications and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The selectable acceleration ranges are ±1.5g, 3g, 6g, and 12g.
The ADXL312ACPZ supports both SPI (3- and 4-wire) and I2C digital interfaces.
The operating voltage range is 2.0 V to 3.6 V.
The operating temperature range is -40°C to +105°C.
The ADXL312ACPZ is supplied in a 5 mm × 5 mm × 1.45 mm LFCSP package.
Yes, the ADXL312ACPZ has built-in motion detection functions for activity/inactivity monitoring.
