| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
13 pcs
|
13 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Acceleration Range | |
| Axis | |
| Axis Alignment | |
| Bandwidth | |
| Features | |
| Lead Spacing | |
| Low Power Consumption | |
| Mounting Type | |
| Noise Floor | |
| Operating Temperature | |
| Output Type | |
| Sensitivity (LSB | |
| Shock Survival | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Zero g Bias Stability |
The ADXL213AE from Analog Devices is a complete dual-axis accelerometer on a single monolithic IC, featuring signal-conditioned, duty cycle modulated digital outputs. It measures acceleration with a full-scale range of ±1.2 g, suitable for both dynamic and static acceleration measurements.
Key electrical specifications include a supply voltage range of 3 V to 6 V and a typical low power consumption of 700 μA at 5 V. The output signals are digital, with duty cycles proportional to acceleration (30%/g), allowing direct measurement by microcontrollers without an A/D converter. The bandwidth is adjustable via external capacitors, supporting ranges from 0.5 Hz to 250 Hz, with a typical noise floor of 160 μg/√Hz.
Designed for reliability, the ADXL213AE offers high zero g bias stability (better than 0.25 mg/°C) and tight sensitivity stability. It can withstand 3500 g shock survival and features X and Y axes aligned to within 0.1° typical. The device is qualified for automotive applications.

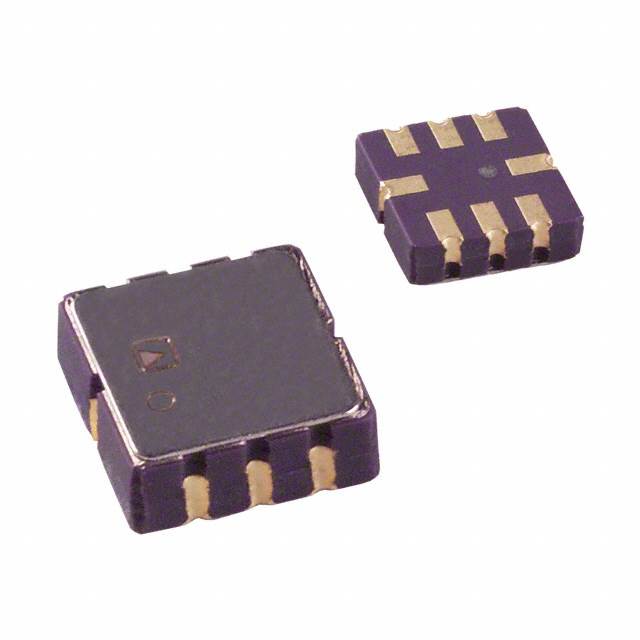

This accelerometer is housed in a compact 8-pad LCC package measuring 5 mm × 5 mm × 2 mm and is designed for surface mounting. Its features make it suitable for applications such as automotive tilt alarms, data projectors, navigation systems, platform stabilization, and motion detectors.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The acceleration range is ±1.2 g.
The ADXL213AE provides PWM digital outputs.
The supply voltage range is 3 V to 6 V.
The operating temperature range is -40°C to 85°C.
The ADXL213AE is available in an 8-LCC (5x5) package.
The typical power consumption is 700 μA at 5 V.
The bandwidth can be adjusted from 1 Hz to 2.5 kHz.
