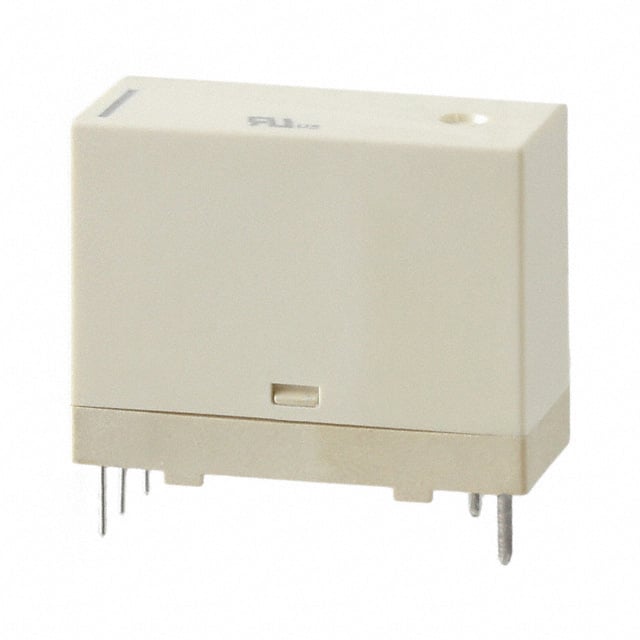

ADW1112W The Panasonic ADW1112W is a general purpose power relay with a 1 Form A contact configuration. It features an 8A contact current rating and a 12VDC coil voltage.
Mfr Part #:

ADW1112W

Available from 1 distributors
Mfr Name: Panasonic Electronic Components
Panasonic Electronic Components
The Panasonic ADW1112W is a general purpose power relay with a 1 Form A contact configuration. It features an 8A contact current rating and a 12VDC coil voltage.
✓ Total Stock: 100,000 pcs
$ Price Range: $2.00

ADW1112W Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
100,000 pcs
On Request
100000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADW1112W Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Coil Current
Coil Insulation
Coil Type
Coil Voltage
Contact Form
Contact Material
Contact Rating (Current)
Mounting Type
Must Operate Voltage
Operate Time
Operating Temperature
Relay Type
Release Time
Seal Rating
Switching Voltage
Termination Style
View Similar Products (0)

ADW1112W Description

Short technical summary and product information.

The Panasonic ADW1112W is a DW series power relay designed for general purpose applications. It features a 1 Form A (SPST-NO) contact configuration capable of switching up to 8A at 250VAC.



The relay operates on a 12VDC coil voltage with a coil current of 16.7 mA. It requires a minimum operate voltage of 9.6 VDC. The operate and release times are both approximately 15 ms.



This relay is suitable for through-hole mounting and uses PC pin termination. The contact material is Silver Tin Oxide (AgSnO). It is sealed for flux protection and operates within a temperature range of -40°C to 85°C.



The ADW1112W is RoHS3 Compliant and has an MSL of 1.

ADW1112W Quick Information

Product Type: Power Relay
Canonical Name: Panasonic ADW1112W DW Relay
Subcategory: Power Relay

ADW1112W Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADW1112W Estimated Pricing

Qty Low High
1+ $2.00 $2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADW1112W Features

  • 8A contact current rating.
  • 12VDC coil voltage.
  • 1 Form A contact configuration.
  • Through hole mounting.
  • Sealed for flux protection.

ADW1112W Applications

  • Used in industrial control systems
  • Suitable for power switching applications
  • Ideal for automation and relay modules
  • Designed for environments with flux exposure

ADW1112W FAQs

5 frequently asked questions generated from this part’s specifications.
What is the coil voltage for the ADW1112W relay?

The coil voltage for the ADW1112W relay is 12VDC.

What is the contact current rating of the ADW1112W relay?

The ADW1112W relay has a contact current rating of 8A.

What is the contact form of the ADW1112W relay?

The ADW1112W relay has a 1 Form A contact form.

What is the operating temperature range for the ADW1112W relay?

The operating temperature range for the ADW1112W relay is -40°C to 85°C.

How is the ADW1112W relay mounted?

The ADW1112W relay is mounted using the through hole method.
