| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,200 pcs
|
2200 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Interface | |
| Function | |
| Mounting Type | |
| Supplier Device Package | |
| Voltage |

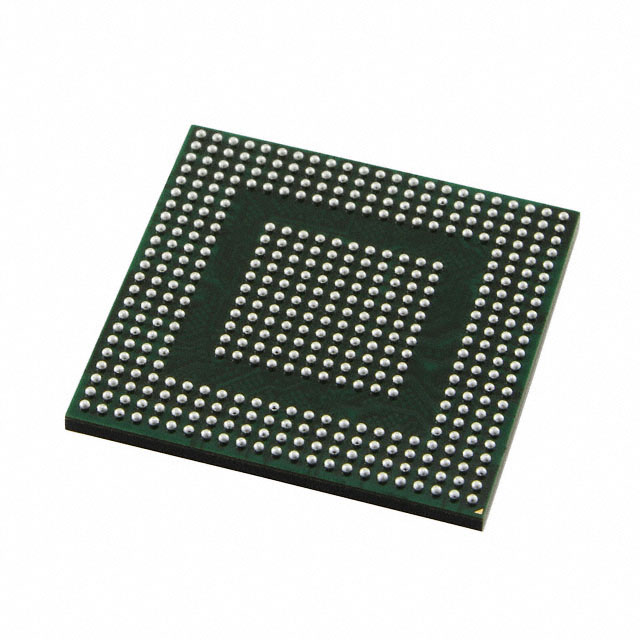

The ADV8005KBCZ-8N is a video signal processor part of the NatureVue family from Analog Devices. It integrates dual 4k×2k HDMI transmitters, a bitmap on-screen display (OSD), and an encoder. The device supports full 12-bit 4:4:4 YCbCr internal processing with motion adaptive deinterlacing and frame rate conversion. It includes dual video scalers enabling simultaneous output of multiple resolutions, and six 12-bit video DACs. Audio features include 8-channel I2S and 6-channel DSD inputs. The control interface uses I²C, I²S, and Serial. It is supplied in a 425-LFBGA/CSPBGA package (425-CSPBGA 19x19) for surface mount. The operating supply voltage range is 1.746V to 1.854V. The device is designed for consumer video applications.
The supply voltage range is 1.746V to 1.854V.
The device is available in a 425-LFBGA, CSPBGA package (supplier device package 425-CSPBGA 19x19).
It is marked as RoHS3 Compliant, but this is unverified and low confidence.
It is a video signal processor for consumer video applications.
It has two HDMI transmitters, each supporting up to 4k×2k resolution.
It uses motion adaptive deinterlacing with ultralow angle interpolation.
It processes full 12-bit 4:4:4 YCbCr internally.
