ADV7611BSWZ-P-RL The ADV7611BSWZ-P-RL is a low power 165 MHz HDMI receiver from Analog Devices. It supports HDMI 1.4a, HDCP 1.4, and features a 24-bit pixel output bus.
Mfr Part #:

ADV7611BSWZ-P-RL

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The ADV7611BSWZ-P-RL is a low power 165 MHz HDMI receiver from Analog Devices. It supports HDMI 1.4a, HDCP 1.4, and features a 24-bit pixel output bus.
✓ Total Stock: 4,925 pcs

ADV7611BSWZ-P-RL Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,125 pcs
On Request
4125 pcs On Request 1 On Request On Request 20+ On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
800 pcs
On Request
800 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADV7611BSWZ-P-RL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Control Interface
Function
Mounting Type
Operating Temperature Range
Standards
Supplier Device Package
Voltage
View Similar Products (0)

ADV7611BSWZ-P-RL Description

Short technical summary and product information.

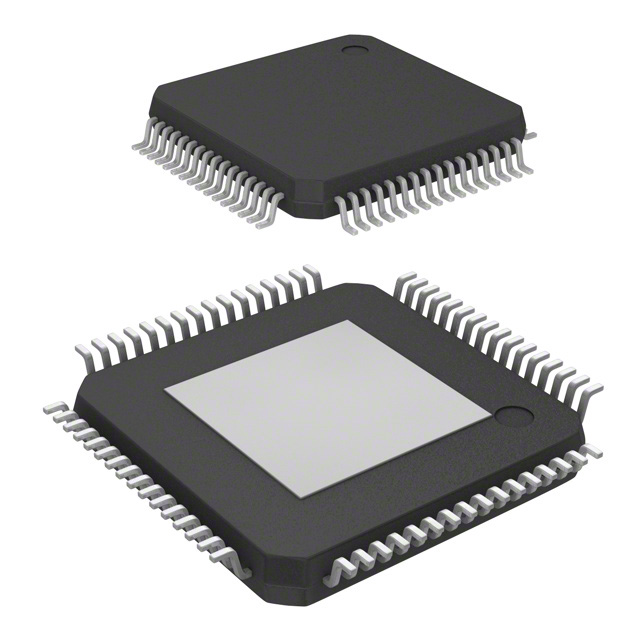

The ADV7611BSWZ-P-RL is a low power HDMI receiver from Analog Devices designed for consumer video applications. It supports HDMI 1.4a standards and features a maximum TMDS clock frequency of 165 MHz, enabling support for all mandatory and additional 3D video formats. The device includes an integrated CEC controller and HDCP 1.4 support with internal keys.



The receiver provides a 24-bit output pixel bus and supports audio extraction via SPDIF and I²S interfaces. It operates from a supply voltage of 3.14V to 3.46V and draws a typical current of 188.1 mA. The device is housed in a 64-lead LQFP exposed pad package (10x10 mm) and is qualified for automotive applications.

ADV7611BSWZ-P-RL Quick Information

Product Type: HDMI Receiver
Series: Adv7610
Canonical Name: ADV7611BSWZ-P-RL Low Power 165 MHz HDMI Receiver
Subcategory: Video ICs

ADV7611BSWZ-P-RL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADV7611BSWZ-P-RL Features

  • Supports HDMI 1.4a with 165 MHz TMDS clock.
  • 24-bit output pixel bus with HDCP 1.4.
  • Integrated CEC controller and HDMI equalizer.
  • Audio extraction via SPDIF and I²S interfaces.
  • 64-lead LQFP exposed pad package.

ADV7611BSWZ-P-RL Applications

  • Ideal for HDTV and projector video inputs.
  • Used in AVR and soundbar HDMI receivers.
  • Suitable for automotive video processing.
  • Designed for video conferencing systems.

ADV7611BSWZ-P-RL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

3.14V to 3.46V.

What is the package type?

64-LQFP Exposed Pad (10x10mm).

What is the operating temperature range?

-40°C to +85°C.

Is the device RoHS compliant?

RoHS3 compliant (unverified).

What HDMI standard does it support?

HDMI 1.4a.

Does it support HDCP?

Yes, version 1.4.

What audio interfaces are available?

SPDIF, I²S, and HDMI audio extraction.
