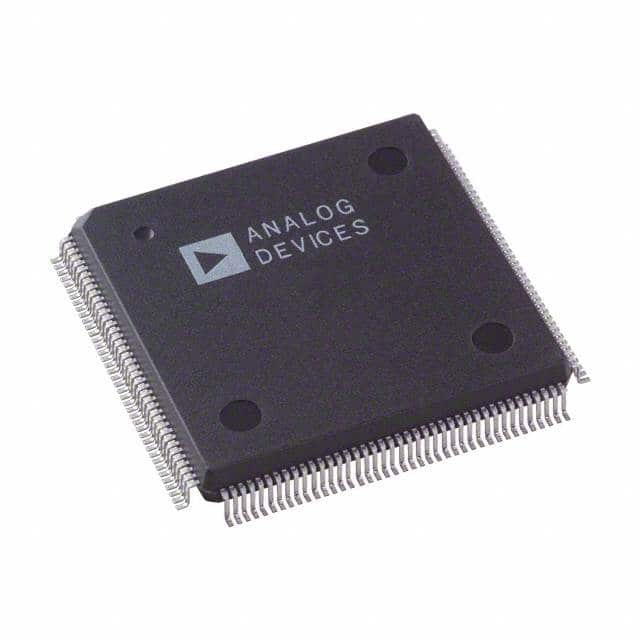

The ADV7162KS140 is a 96-bit pixel port Video RAM-DAC with triple 10-bit gamma-correcting D/A converters, manufactured by Analog Devices. It includes an on-board programmable PLL and a 64x64 hardware cursor. The device supports resolutions up to 1600x1200 at 85 Hz refresh with 24-bit color. It features a 256x10 per color palette RAM and three color overlay. The digital inputs are TTL compatible and the analog outputs are RS-343A/RS-170 compatible RGB. The control interface is serial. The supply voltage range is 4.75V to 5.25V. The device is housed in a 160-lead PQFP (28x28mm) package and is surface mount. It is designed for high-performance graphics workstations, windows accelerators, and professional color prepress imaging.
The supply voltage range is 4.75V to 5.25V.
The device is available in a 160-lead PQFP (28x28mm) package, also referred to as 160-BQFP.
The part is marked as RoHS3 compliant, but this information is unverified and has low confidence.
The DAC resolution is 10 bits per channel, with three DACs total.
The maximum clock speed is 140 MHz (inferred from speed grade).
The pixel port width is 96 bits.
Yes, it has an on-board programmable PLL.
