| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,009 pcs
|
2009 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request | |
|
7 pcs
|
7 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Data Interface | |
| Mounting Type | |
| Operating Temperature | |
| Resolution (Bits) | |
| Sigma Delta | |
| Supplier Device Package | |
| Type | |
| Voltage |
The ADV601LCJSTZ is a video codec integrated circuit from Analog Devices designed for real-time compression and decompression of CCIR-601 digital video. It supports compression ratios from visually loss-less to 350:1, with typical visually loss-less compression at 4:1 on natural images. The device features an 8-bit video interface supporting CCIR-656 and multiplexed Philips formats, and a general purpose 16- or 32-bit host interface with a 512 deep 32-bit FIFO.
Operating from a 4.5V to 5.5V supply, the ADV601LCJSTZ is specified for a temperature range of 0°C to 70°C. It is available in a 120-LQFP (14x14mm) package for surface mount assembly. The device is 100% bitstream compatible with the ADV601, making it suitable for a wide range of video applications including PC video editing, remote CCTV surveillance, digital camcorders, and digital video tape systems.
The ADV601LCJSTZ has an 8-bit resolution.
The supply voltage range is 4.5V to 5.5V for both analog and digital sections.
The operating temperature range is 0°C to 70°C.

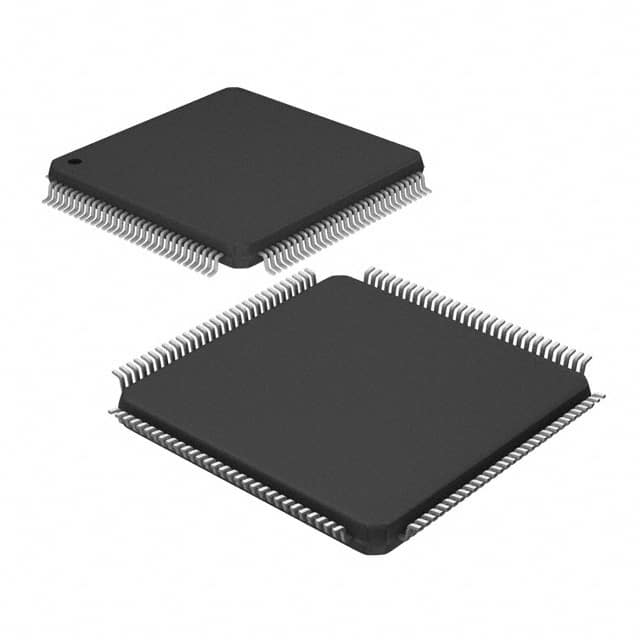

The ADV601LCJSTZ is available in a 120-LQFP (14x14mm) surface-mount package.
It supports 8-bit CCIR-656 and Multiplexed Philips video formats.
The compression ratio ranges from visually lossless to 350:1, with a typical ratio of 4:1 for natural images.
The ADV601LCJSTZ is listed as RoHS3 Compliant, but this status is unverified and conflicts with distributor data.
