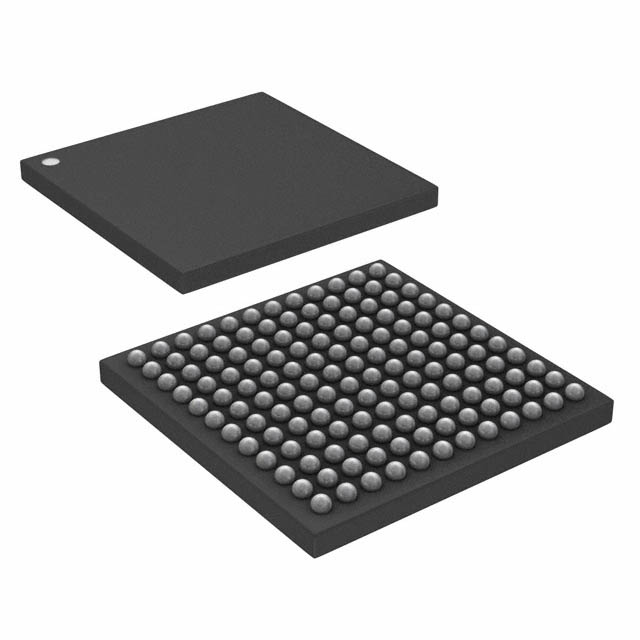

The ADV212BBCZ-150 is a JPEG2000-compatible video codec from Analog Devices, part of the Wavescale codec family. It implements the Wavescale video compression/decompression engine for video and still images, supporting 9/7 and 5/3 wavelet transforms with up to 5 transform levels. The device is pin-for-pin compatible with the ADV202 and provides at least 30% power reduction.
The codec accepts direct video interface formats including ITU-R BT.656, SMPTE 125M PAL/NTSC, SMPTE 274M, SMPTE 293M (525p), and ITU-R BT.1358 (625p), with a maximum input rate of 65MSPS in irreversible mode and 40MSPS in reversible mode. It offers a flexible asynchronous SRAM-style 16-bit host interface for connection to most 16-/32-bit microcontrollers and ASICs. Core supply is 1.5V while I/O operates at 2.5V or 3.3V.
The ADV212BBCZ-150 is supplied in a 144-ball CSPBGA (13x13mm) surface-mount package, rated for operation over -40°C to 85°C. It supports JTAG/boundary scan and programmable tile/image sizes up to 4096 pixels in single-component mode. Multiple devices can be combined to support full-frame SMPTE 274M HDTV (1080i) or SMPTE 296M (720p).
It requires a 1.5V core supply and a 2.5V or 3.3V I/O supply.
It is offered in a 144-ball CSPBGA (13x13mm) surface-mount package, also listed as 144-BGA, CSPBGA.
It operates over -40°C to 85°C.
The part is listed as RoHS3 compliant, though this compliance status is unverified.
The maximum input rate is 65MSPS in irreversible mode and 40MSPS in reversible mode.
The speed grade is 150MHz.
The host interface data bus is 16 bits wide.
