The ADuM7223 is a 4.0 A isolated, half-bridge gate driver from Analog Devices, utilizing iCoupler® technology for independent and isolated high-side and low-side outputs. It combines high-speed CMOS and monolithic transformer technology for superior performance compared to alternatives.
This gate driver operates with an input supply ranging from 3.0 V to 5.5 V and offers output drive voltages from 4.5 V to 18 V. Key electrical specifications include a maximum peak output current of 4.0 A, a maximum propagation delay of 64 ns, and channel-to-channel matching of 8.5 ns. It provides 565 V peak working voltage from input to output and 700 V peak from output to output.
The ADuM7223 is designed for applications such as switching power supplies, isolated IGBT/MOSFET gate drives, and industrial inverters. It operates at high frequencies up to 1 MHz and offers high common-mode transient immunity of greater than 25 kV/μs.

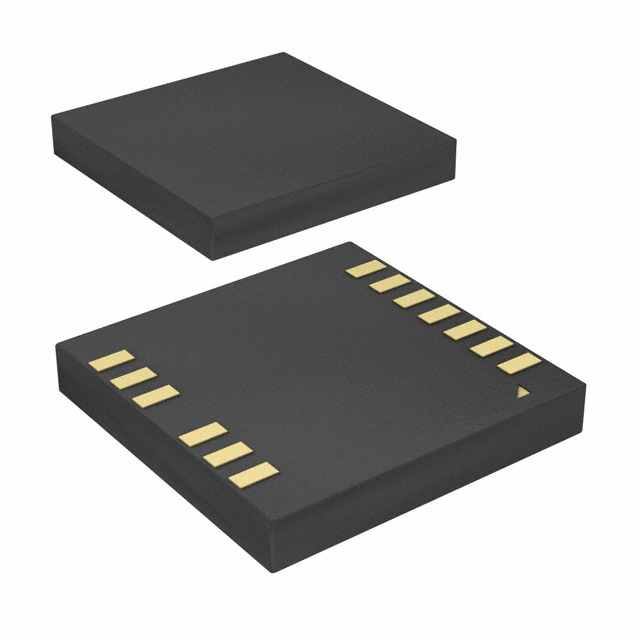

Packaged in a 5 mm × 5 mm, 13-terminal LGA, this device is suitable for surface mounting. It operates within a temperature range of -40°C to 125°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADUM7223ACCZ has a peak output current of 4.0 A.
The ADUM7223ACCZ provides 565 V peak working voltage from input to output and 700 V peak from output to output.
The maximum propagation delay for the ADUM7223ACCZ is 64 ns.
The ADUM7223ACCZ operates from -40°C to 125°C.
The ADUM7223ACCZ is available in a 13-LGA (5x5) package, which is a surface mount type.
