| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,635 pcs
|
12635 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Data Rate | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output Power | |
| Storage Temperature | |
| Tape & Reel |

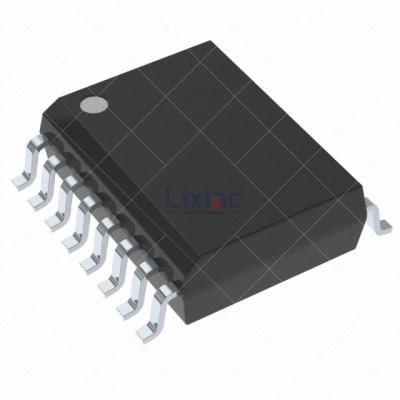

The ADUM5401ARWZ-RL by Analog Devices is a quad-channel digital isolator that integrates an isolated DC-to-DC converter, known as isoPower. This technology eliminates the need for a separate isolated power supply in low-power applications.
This device offers up to 500 mW of regulated output power and provides 2.5 kV of isolation. It supports data rates up to 25 Mbps (NRZ) and features high common-mode transient immunity of greater than 25 kV/µs. The operating temperature range is up to 105°C.
Designed with Analog Devices' iCoupler technology, the ADUM5401ARWZ-RL is housed in a 16-lead SOIC package with 7.6 mm creepage. It is suitable for applications such as RS-232/RS-422/RS-485 transceivers, industrial field bus isolation, power supply start-up bias, gate drives, isolated sensor interfaces, and industrial PLCs.
Safety and regulatory approvals include UL recognition, CSA Component Acceptance, and VDE certificate of conformity.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation voltage is 2.5 kV rms for 1 minute per UL 1577.
The integrated DC-to-DC converter provides up to 500 mW of regulated output power.
The device supports data rates up to 25 Mbps NRZ.
The operating temperature range is up to 105°C.
The ADUM5401ARWZ-RL is supplied in a 16-lead SOIC package.
