Mfr Part #:

ADUM1441ARQZ-RL7

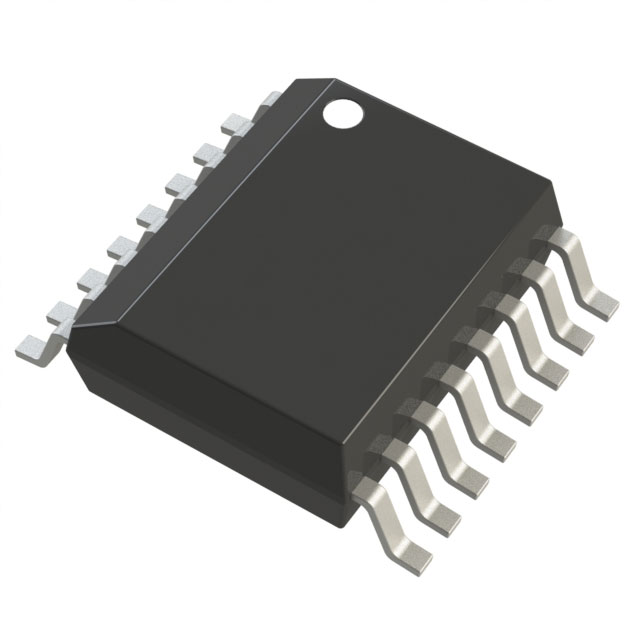

The ADUM1441ARQZ-RL7 from Analog Devices is a micropower, 4-channel digital isolator based on iCoupler technology. It offers high-speed data transfer up to 2 Mbps with low power consumption.

✓ Total Stock: 7,796 pcs

$ Price Range: $0.99

ADUM1441ARQZ-RL7 Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Smaxon Electronics ✓ Non-Authorised Inventory information	4,010 pcs On Request	4010 pcs	On Request	1	On Request	On Request	20+	On Request	On Request
Optech Co.,Limited ✓ Non-Authorised Inventory information	3,000 pcs On Request	3000 pcs	On Request	1	On Request	On Request	24+	On Request	On Request
Fe Components ✓ Non-Authorised Inventory information	786 pcs On Request	786 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ADUM1441ARQZ-RL7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	ADI Electronics
Data Rate	2 Mbps
Mounting Type	Surface Mount
Operating Temperature	125°C

View Similar Products (0)

ADUM1441ARQZ-RL7 Description

Short technical summary and product information.

The ADuM1441ARQZ-RL7 is a micropower, 4-channel digital isolator from Analog Devices, utilizing iCoupler technology for reliable signal isolation. It supports bidirectional communication with data rates up to 2 Mbps (NRZ).

This isolator family features ultralow power operation, with typical quiescent currents as low as 0.1 µA per channel when refresh is disabled at 2.5 V. Dynamic current consumption is also minimal, at 117 µA/Mbps per channel for 2.5 V operation. The device operates at high temperatures up to 125°C and provides high common-mode transient immunity exceeding 25 kV/µs.

Packaged in a compact 16-lead QSOP, the ADuM1441ARQZ-RL7 offers significant board space savings compared to larger isolation packages. It meets stringent regulatory requirements, including UL 1577 component recognition for 2500 V rms isolation and VDE certification.

Applications include general-purpose, low-power multichannel isolation, low-power peripheral interface (SPI) at 1 MHz, and 4 mA to 20 mA loop process controls. Its robust design and low power consumption make it suitable for various industrial and embedded systems requiring reliable signal isolation.

ADUM1441ARQZ-RL7 Quick Information

Product Type: Digital Isolator

Canonical Name: ADuM1441 Quad-Channel Digital Isolator

Subcategory: Quad-Channel

ADUM1441ARQZ-RL7 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ADUM1441ARQZ-RL7 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADUM1441ARQZ-RL7 Features

Micropower 4-channel digital isolator
Up to 2 Mbps data rate (NRZ)
Ultralow power consumption
High common-mode transient immunity
Compact 16-lead QSOP package

ADUM1441ARQZ-RL7 Applications

Low power multichannel isolation
Low power SPI interfaces
4 mA to 20 mA loop controls
Industrial automation systems

ADUM1441ARQZ-RL7 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the maximum data rate for the ADUM1441ARQZ-RL7?

The maximum data rate is 2 Mbps (NRZ).

What is the typical quiescent current at 3.3 V with refresh enabled?

The typical quiescent current is 5.6 µA per channel.

What is the typical quiescent current at 2.5 V with refresh disabled?

The typical quiescent current is 0.1 µA per channel.

What is the maximum operating temperature for this digital isolator?

The maximum operating temperature is 125°C.

What is the isolation voltage rating for the QSOP package?

The isolation voltage rating for the QSOP package is 2500 V rms for 1 minute per UL 1577.

What is the package type for the ADUM1441ARQZ-RL7?

The component is supplied in a 16-lead QSOP package.
