| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
470 pcs
|
470 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Supplier Device Package |

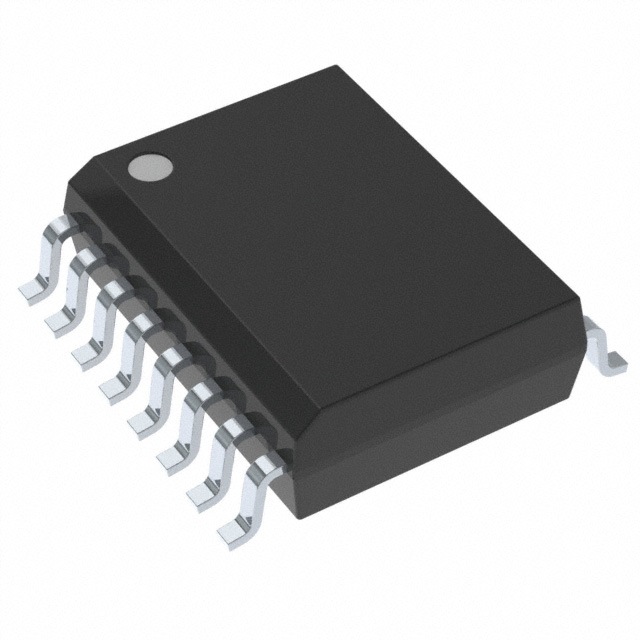

The ADUM1402CRWZ is a quad-channel digital isolator manufactured by Analog Devices, utilizing iCoupler® technology. It provides robust isolation with a 2500Vrms rating and supports high data rates up to 90Mbps (NRZ).
Key electrical specifications include a wide supply voltage range of 2.7V to 5.5V and high common-mode transient immunity of greater than 25 kV/µs. The isolator features precise timing characteristics with a maximum pulse width distortion of 2 ns and channel-to-channel matching of 2 ns. It operates within a temperature range of -40°C to 105°C.
This device is suitable for general-purpose multichannel isolation, SPI interface isolation, data converter isolation, and industrial field bus isolation. It is available in a 16-lead SOIC wide body package and is designed for surface mounting.
The ADuM1400/ADuM1401/ADuM1402 series offers outstanding performance compared to traditional optocoupler devices, eliminating design difficulties associated with current transfer ratios, nonlinearities, and temperature/lifetime effects. These isolators consume significantly less power than optocouplers.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The device operates from 2.7 V to 5.5 V supply voltage.
It comes in a 16-SOIC (0.295 inch, 7.50 mm width) package.
The maximum data rate is 90 Mbps.
The maximum propagation delay is 32 nanoseconds.
The maximum pulse width distortion is 2 nanoseconds.
It operates from -40°C to 105°C.
Yes, it is RoHS3 compliant.
