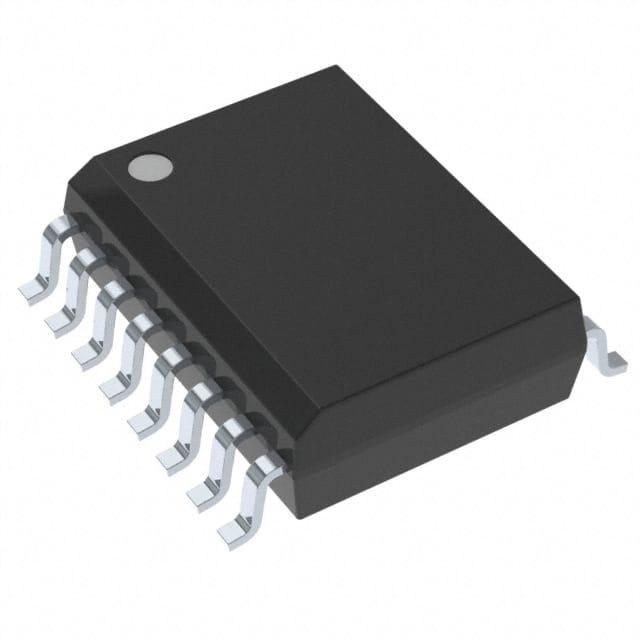

ADUM1234BRWZ The Analog Devices Inc. ADUM1234BRWZ is a 2-channel digital isolator utilizing magnetic coupling technology. It offers 2500Vrms isolation and operates over a wide temperature range.
Mfr Part #:

ADUM1234BRWZ

Available from 1 distributors
Mfr Name: AD(RoHS)
AD(RoHS)
The Analog Devices Inc. ADUM1234BRWZ is a 2-channel digital isolator utilizing magnetic coupling technology. It offers 2500Vrms isolation and operates over a wide temperature range.
✓ Total Stock: 85 pcs
$ Price Range: $8.46

ADUM1234BRWZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
85 pcs
On Request
85 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADUM1234BRWZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Lead Spacing
Lead Style
Mounting Type
Number of Channels
Operating Temperature
Propagation Delay
Technology
View Similar Products (0)

ADUM1234BRWZ Description

Short technical summary and product information.

The ADUM1234BRWZ from Analog Devices Inc. is a high-performance digital isolator designed for robust signal isolation in demanding applications. Featuring magnetic coupling technology, this component provides 2500Vrms of isolation, ensuring signal integrity and system protection.



Key electrical specifications include a Common Mode Transient Immunity (CMTI) of 75kV/µs, a maximum propagation delay of 160ns, and a pulse width distortion of 8ns. The device delivers a peak output current of 100mA and operates with an output supply voltage between 12V and 18V. The typical rise and fall times are 25ns.



Designed for ease of integration, the ADUM1234BRWZ is available in a 16-SOIC surface mount package. It operates reliably within an extended temperature range of -40°C to 105°C, making it suitable for various industrial and commercial environments. This 2-channel isolator is an excellent choice for applications requiring reliable and efficient signal isolation.

ADUM1234BRWZ Quick Information

Product Type: Digital Isolator
Series: ADuM1234
Canonical Name: Analog Devices Inc. ADUM1234BRWZ Digital Isolator
Subcategory: Gate Driver

ADUM1234BRWZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADUM1234BRWZ Estimated Pricing

Qty Low High
1+ $8.46 $8.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADUM1234BRWZ Features

  • 2-channel digital isolator with magnetic coupling.
  • Provides 2500Vrms isolation for signal integrity.
  • High Common Mode Transient Immunity of 75kV/µs.
  • Operates from -40°C to 105°C.
  • Surface mount 16-SOIC package.

ADUM1234BRWZ Applications

  • Ideal for industrial control systems.
  • Suitable for power supply applications.
  • Used in communication interfaces.
  • Protects sensitive circuitry.

ADUM1234BRWZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the ADUM1234BRWZ?

2500Vrms.

What is the output supply voltage range?

12V to 18V.

What is the common-mode transient immunity?

Minimum 75kV/µs.

What is the propagation delay?

Maximum 160ns.

How many channels does the ADUM1234BRWZ have?

2 channels.

What is the package type?

16-SOIC (Surface Mount).

What is the operating temperature range?

-40°C to 105°C.
