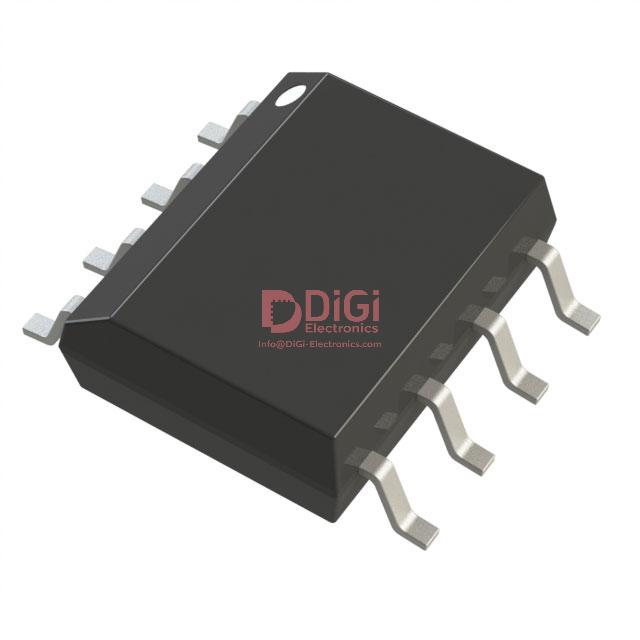

ADUM1100ARZ-RL7 The Analog Devices Inc. ADUM1100ARZ-RL7 is a general-purpose digital isolator offering 2500Vrms isolation. It operates at data rates up to 25Mbps.
Mfr Part #:

ADUM1100ARZ-RL7

Available from 1 distributors
Mfr Name: AD(RoHS)
AD(RoHS)
The Analog Devices Inc. ADUM1100ARZ-RL7 is a general-purpose digital isolator offering 2500Vrms isolation. It operates at data rates up to 25Mbps.
✓ Total Stock: 75 pcs
$ Price Range: $8.46

ADUM1100ARZ-RL7 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
75 pcs
On Request
75 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADUM1100ARZ-RL7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Channel Type
Data Rate
Number of Channels
Technology
Type
Width
View Similar Products (0)

ADUM1100ARZ-RL7 Description

Short technical summary and product information.

The Analog Devices Inc. ADUM1100ARZ-RL7 is a single-channel, unidirectional digital isolator from the iCoupler® series. It provides robust isolation of 2500Vrms, making it suitable for applications requiring high voltage separation.



This isolator supports data rates up to 25Mbps with a fast propagation delay of 18ns. It exhibits excellent common-mode transient immunity (CMTI) of 25kV/µs, ensuring reliable operation in noisy environments. The device is designed for general-purpose isolation and does not require an isolated power supply.



Packaged in an 8-SOIC form factor with a width of 3.90mm, the ADUM1100ARZ-RL7 is suitable for surface-mount applications. Its typical rise and fall times are 3ns, and it has a pulse width distortion of only 2ns.

ADUM1100ARZ-RL7 Quick Information

Product Type: Digital Isolator
Series: iCoupler®
Canonical Name: ADUM1100ARZ-RL7 Digital Isolator
Subcategory: Digital Isolator

ADUM1100ARZ-RL7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADUM1100ARZ-RL7 Estimated Pricing

Qty Low High
1+ $8.46 $8.46

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADUM1100ARZ-RL7 Features

  • Provides 2500Vrms of isolation.
  • Supports data rates up to 25Mbps.
  • Features 25kV/µs common-mode transient immunity.
  • Single-channel, unidirectional design.
  • Packaged in an 8-SOIC surface-mount format.

ADUM1100ARZ-RL7 Applications

  • Ideal for noise-sensitive applications.
  • Suitable for high-voltage interface circuits.
  • Used in industrial control systems.
  • Applicable in power supply designs.

ADUM1100ARZ-RL7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type of the ADUM1100ARZ-RL7?

The device is packaged in an 8-SOIC (3.90mm width) package.

What is the isolation voltage rating?

The isolation voltage is 2500Vrms.

What data rate does the ADUM1100ARZ-RL7 support?

The maximum data rate is 25Mbps.

How many channels does this isolator have?

It has 1 channel.

What isolation technology is used?

Magnetic coupling is used.

What is the common mode transient immunity?

Minimum common mode transient immunity is 25kV/µs.

What is the propagation delay?

Maximum propagation delay (tpLH/tpHL) is 18ns.
