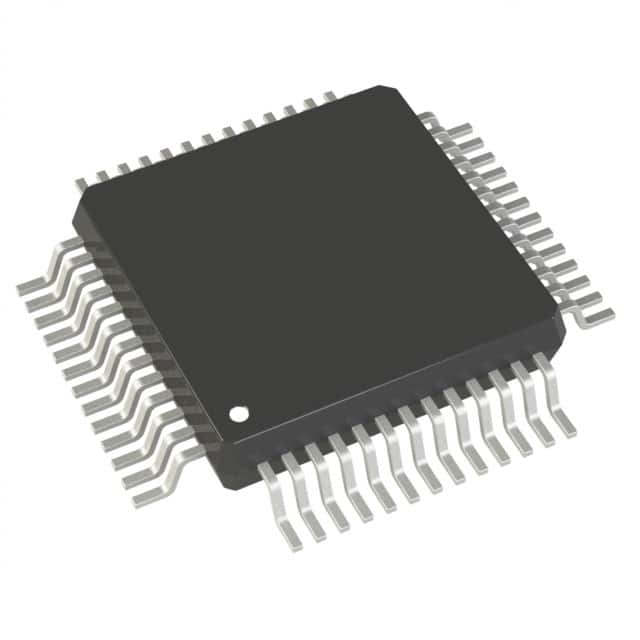

ADUC848BSZ62-5 The Analog Devices ADUC848BSZ62-5 is an 8-bit microcontroller featuring 62KB of Flash program memory and a 12.58MHz core speed. It offers 34 programmable I/O lines and operates within a 4.75V to 5.25V supply range.
Mfr Part #:

ADUC848BSZ62-5

Available from 2 distributors
Mfr Name: Analog Devices / Maxim Integrated
Analog Devices / Maxim Integrated
The Analog Devices ADUC848BSZ62-5 is an 8-bit microcontroller featuring 62KB of Flash program memory and a 12.58MHz core speed. It offers 34 programmable I/O lines and operates within a 4.75V to 5.25V supply range.
✓ Total Stock: 9,038 pcs

ADUC848BSZ62-5 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
6,846 pcs
On Request
6846 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,192 pcs
On Request
2192 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADUC848BSZ62-5 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
EEPROM Size
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
View Similar Products (0)

ADUC848BSZ62-5 Description

Short technical summary and product information.

The ADUC848BSZ62-5 from Analog Devices is an 8-bit microcontroller based on the 8052 core, operating at a maximum clock frequency of 12.58MHz. It integrates 62KB of Flash program memory and 4KB of EEPROM data memory, alongside 2.25KB of RAM.



This device features a comprehensive set of peripherals including a 10-channel Analog-to-Digital Converter (ADC) with 16-bit resolution and Digital-to-Analog Converters (DACs) with 12-bit and 16-bit resolutions. It supports I²C, SPI, and UART/USART serial interfaces for versatile connectivity. With 34 programmable I/O lines, it offers flexibility for various applications.



The microcontroller is designed for surface mounting and comes in a 52-MQFP package. It operates within a voltage range of 4.75V to 5.25V and has an operating temperature range of -40°C to 125°C.



Key features include an internal oscillator, power-on reset (POR), power supply monitor (PSM), watchdog timer (WDT), and temperature sensor. Its robust feature set makes it suitable for industrial and portable instrumentation, data logging, and precision system monitoring.

ADUC848BSZ62-5 Quick Information

Product Type: Microcontroller
Series: ADuC8xx
Canonical Name: Analog Devices ADUC848BSZ62-5 8-Bit Microcontroller
Subcategory: 8-bit Microcontrollers - MCU

ADUC848BSZ62-5 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADUC848BSZ62-5 Features

  • 8-bit microcontroller with 8052 core.
  • 62KB Flash program memory and 4KB EEPROM.
  • 12.58MHz maximum clock frequency.
  • 10-channel 16-bit ADC and multiple DACs.
  • Surface mount 52-MQFP package.

ADUC848BSZ62-5 Applications

  • Suitable for multichannel sensor monitoring.
  • Ideal for industrial instrumentation.
  • Used in portable, battery-powered systems.
  • Applicable for data logging tasks.
  • Designed for precision system monitoring.

ADUC848BSZ62-5 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the ADUC848BSZ62-5?

The operating voltage is 4.75V to 5.25V.

What package type is the ADUC848BSZ62-5 supplied in?

It is supplied in a 52-MQFP (10x10) package.

What is the operating temperature range for the ADUC848BSZ62-5?

The operating temperature range is -40°C to 125°C.

What is the program memory size of the ADUC848BSZ62-5?

The program memory size is 62KB (62K x 8).

What is the core processor of the ADUC848BSZ62-5?

The core processor is the 8052.

What are the data conversion capabilities of the ADUC848BSZ62-5?

It features an A/D converter with 10x16-bit channels and D/A converters with 1x12-bit and 2x16-bit channels.
