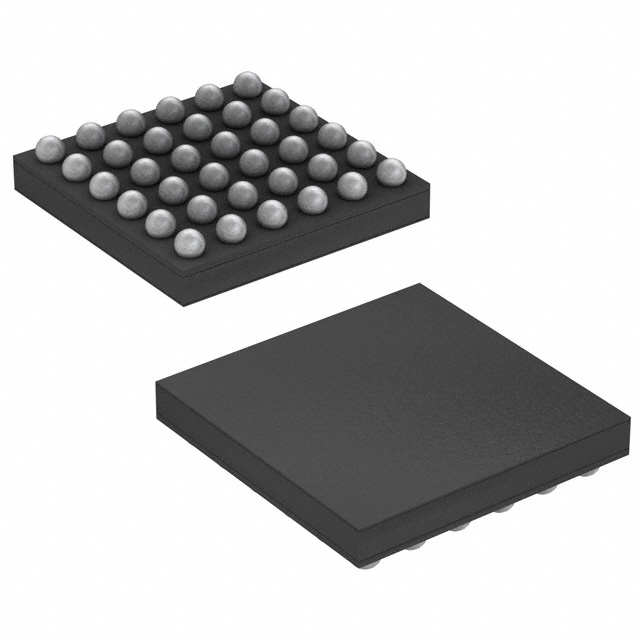

ADUC7023BCBZ62I-R7 The ADUC7023BCBZ62I-R7 is an ARM7® series microcontroller from Analog Devices Inc. It operates at 44MHz and features 62KB of FLASH program memory.
Mfr Part #:

ADUC7023BCBZ62I-R7

Available from 2 distributors
Mfr Name: ADI Electronics
ADI Electronics
The ADUC7023BCBZ62I-R7 is an ARM7® series microcontroller from Analog Devices Inc. It operates at 44MHz and features 62KB of FLASH program memory.
✓ Total Stock: 7,178 pcs
$ Price Range: $2.50

ADUC7023BCBZ62I-R7 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,078 pcs
On Request
7078 pcs On Request 1 On Request On Request 20+ On Request On Request
Risen Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADUC7023BCBZ62I-R7 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Lead Spacing
Lead Style
Mounting Type
Number of I/O
Operating Temperature
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Tape & Reel
View Similar Products (0)

ADUC7023BCBZ62I-R7 Description

Short technical summary and product information.

The ADUC7023BCBZ62I-R7 is a microcontroller from Analog Devices Inc., built on the ARM7® architecture. This 16/32-bit device operates at a speed of 44MHz, providing efficient processing capabilities for embedded applications.



Key electrical specifications include 62KB of FLASH program memory and 2KB of RAM, supporting diverse programming needs. It offers a supply voltage range of 2.7V to 3.6V and includes integrated peripherals such as I2C, SPI, POR, PWM, and WDT. The device also features 10x12-bit Analog-to-Digital converters and 4x12-bit Digital-to-Analog converters.



Designed for surface mounting, the ADUC7023BCBZ62I-R7 comes in a compact 36-WLCSP package with dimensions of 3.4x3.4mm. Its operating temperature range is -40°C to 125°C, making it suitable for various environmental conditions. The microcontroller is RoHS3 compliant and has a Moisture Sensitivity Level of 1.



This part is part of the MicroConverter® ADuC7xxx series, offering a robust solution for embedded control and data acquisition tasks. Its connectivity options and integrated peripherals make it a versatile component for a wide range of electronic designs.

ADUC7023BCBZ62I-R7 Quick Information

Product Type: Microcontroller
Series: ADuC7xxx
Canonical Name: ADUC7023BCBZ62I-R7 ARM7® Microcontroller
Subcategory: Embedded Microcontroller

ADUC7023BCBZ62I-R7 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADUC7023BCBZ62I-R7 Estimated Pricing

Qty Low High
1+ $2.50 $2.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADUC7023BCBZ62I-R7 Features

  • ARM7® series 16/32-Bit microcontroller
  • Operates at 44MHz clock speed
  • 62KB FLASH program memory
  • 2.7V to 3.6V supply voltage
  • 36-WLCSP surface mount package

ADUC7023BCBZ62I-R7 Applications

  • Suitable for embedded control tasks
  • Ideal for data acquisition systems
  • Supports I2C and SPI communication
  • Wide operating temperature range

ADUC7023BCBZ62I-R7 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the ADUC7023BCBZ62I-R7?

2.7V to 3.6V.

What is the operating temperature range of this microcontroller?

-40°C to +125°C.

What package does the ADUC7023BCBZ62I-R7 come in?

36-UFBGA, WLCSP (36-WLCSP 3.4x3.4mm).

What is the core processor and speed of this device?

ARM7 16/32-bit core running at 44MHz.

How much program memory and RAM does it have?

62KB FLASH program memory and 2KB RAM.

What serial interfaces are supported?

I2C and SPI.

Does it have integrated analog converters?

Yes, it includes a 10-channel 12-bit A/D converter and a 4-channel 12-bit D/A converter.
