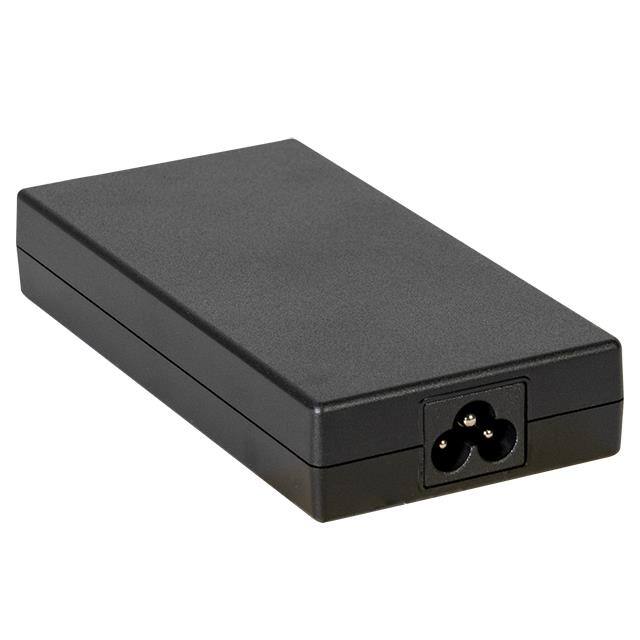

This Delta Electronics AC/DC desktop adapter, model ADT-120A24AA F-A, delivers 120W of power with a 24V output at 5A. Designed for ITE (Commercial) applications, it meets safety standards including 60950-1 and 62368-1, and holds approvals from CB, CCC, CE, cULus, PSE, KC, and TUV.
The adapter utilizes an IEC 320-C6 input connector and a Barrel Plug R/A output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm). Its dimensions are 138.0mm in length, 68.5mm in width, and 24.5mm in height. The operating temperature range is -10°C to 60°C.
It boasts Level VI efficiency and CoC Tier 2 compliance, with a low no-load power consumption of 150mW. The unit is classified as Desktop (Class I) and is suitable for international use. Environmental compliance includes RoHS3 status and MSL 1, Unlimited.
This adapter is designed for applications requiring a stable 24V power source, suitable for various commercial electronic equipment. The input cord is sold separately.
24V.
5A.
120W.
IEC 320-C6.
-10°C to 60°C.
Level VI, CoC Tier 2.
Barrel plug right angle, 2.5mm I.D. x 5.5mm O.D. x 11.0mm.
