| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

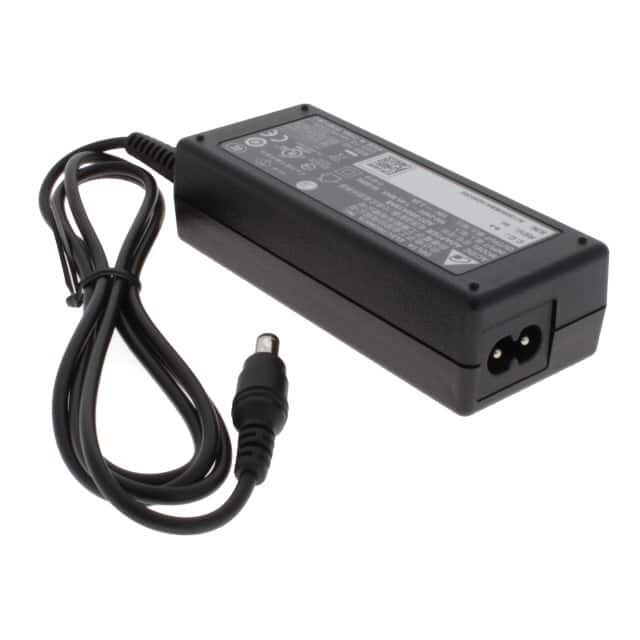

The Delta Electronics ADT-060A19AB B-A is an AC/DC desktop adapter designed for ITE (Commercial) applications. It delivers a 19V output with a maximum current of 3.2A, providing a total power of 61W.
This adapter meets Level VI efficiency standards and operates within a temperature range of -10°C to 60°C. It features an IEC 320-C8 input connector and a barrel plug output with 2.1mm I.D. x 5.5mm O.D. dimensions and positive center polarization. The adapter's dimensions are 108.0mm x 46.0mm x 29.5mm.
Compliance is indicated by agencies such as BSMI, CB Scheme, CE, EN, KC, SIQ, and UL. The unit is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
The output is 19 VDC at 3.2A.
The power rating is 61 watts.
It meets Level VI efficiency standards.
The operating temperature range is -10°C to 60°C.
It uses an IEC 320-C8 input connector.
The output connector is a barrel plug with 2.1mm I.D. and 5.5mm O.D.
