| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Military Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Standard Number | |
| Voltage | |
| Width |

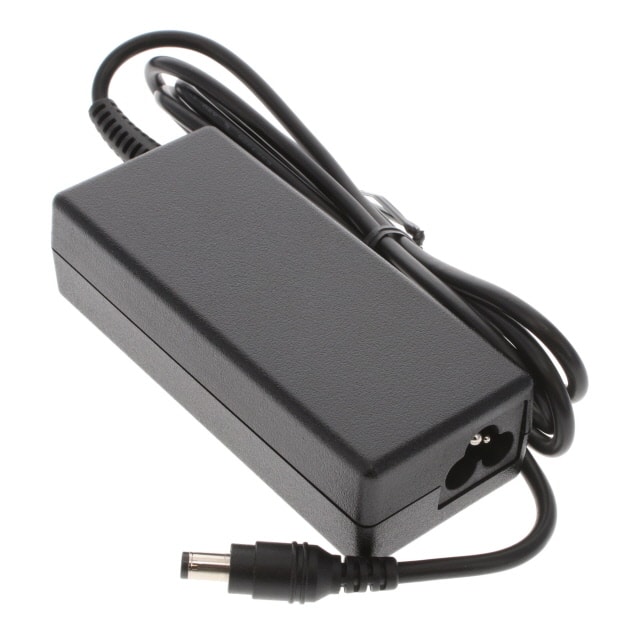

The Delta Electronics ADT-060A12AA B-A is a 60W AC/DC desktop adapter designed for ITE (Commercial) applications. It operates with a 12V output voltage and a 5A current rating, offering Level VI efficiency.
The adapter features an IEC 320-C6 input connector and a 2.1mm I.D. x 5.5mm O.D. x 10.0mm barrel plug output with positive center polarization. Its dimensions are 108.0mm x 46.0mm x 29.5mm. The operating temperature range is -10°C to 60°C.
Compliance includes BSMI, CB Scheme, CE, EN, KC, SIQ, and UL approvals. It meets various standards such as 61000-3-2 and 61000-3-3. The RoHS status is RoHS3 Compliant, and the REACH status is unaffected. The adapter requires a cord, sold separately, with a length of 1.20m.
The output voltage is 12V.
The power rating is 60W.
The operating temperature range is -10°C to 60°C.
It uses an IEC 320-C6 input connector.
The dimensions are 108.0mm x 46.0mm x 29.5mm.
