ADSP-TS201SABP-050

The ADSP-TS201SABP-050 is an embedded processor from Analog Devices, part of the TigerSHARC family. It offers high performance with an instruction cycle rate of up to 600 MHz and 24M bits of internal DRAM. This processor is designed for demanding multiprocessor DSP applications, particularly in telecommunications infrastructure.

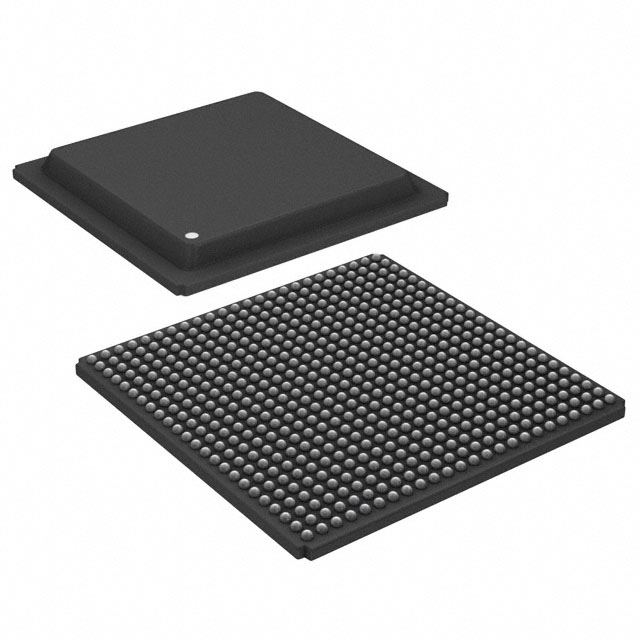

Key features include dual-computation blocks, dual-integer ALUs, and integrated I/O such as a 14-channel DMA controller, external port, and four link ports. It supports both fixed-point and floating-point data formats, including IEEE 32-bit and 40-bit extended precision. The processor is supplied in a 25 mm x 25 mm, 576-ball thermally enhanced ball grid array (BGA) package, suitable for surface mounting.

This device is optimized for static superscalar DSP operations and supports low overhead DMA transfers between various memory types and processors. Its flexible instruction set and DSP architecture facilitate easier programming for complex applications. The ADSP-TS201SABP-050 enables scalable multiprocessing systems with efficient communication overhead and on-chip arbitration for glueless multiprocessing.
