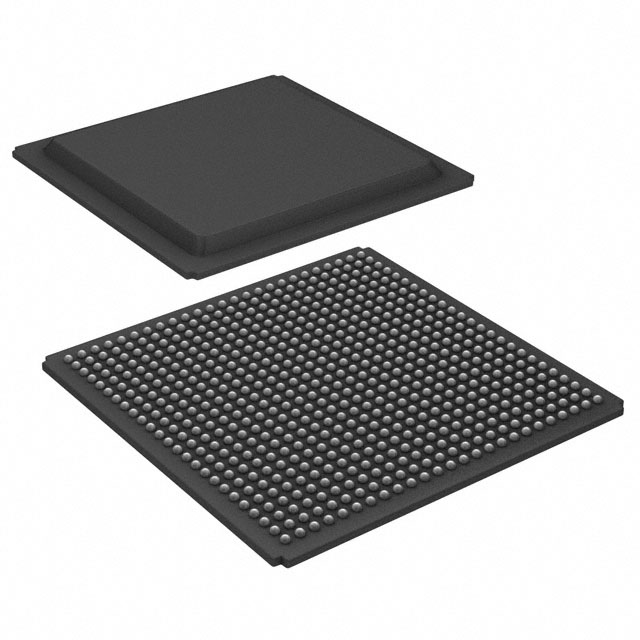

ADSP-TS101SAB1Z100

The ADSP-TS101SAB1Z100 is a TigerSHARC embedded processor from Analog Devices, designed for high-performance digital signal processing in telecommunications infrastructure and other demanding multiprocessor applications. Operating at a 300 MHz clock rate with a 3.3 ns instruction cycle, it is a static superscalar DSP capable of both fixed and floating point arithmetic.

This DSP integrates 768 kB (6 Mbits) of on-chip SRAM, dual computation blocks each containing an ALU, multiplier, shifter, and register file, along with dual integer ALUs for data addressing. It includes a 14-channel DMA controller, external port, four link ports, SDRAM controller, programmable flag pins, two timers, and a JTAG test access port for on-chip emulation. On-chip arbitration enables glueless multiprocessing with up to eight TigerSHARC processors on a bus.

The device is offered in a 625-ball PBGA (27mm x 27mm) package with surface mount mounting. It operates over a temperature range of -40°C to 85°C (case temperature) and requires a 3.3V nominal supply voltage. Interfaces include host interface, link port, and multi-processor support.
