| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Rate | |
| Core Processor | |
| Interface | |
| Mounting Type | |
| Non | |
| Number of Cores | |
| Number of I/O | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Type | |
| Voltage |
The ADSP-BF561SBB600 is a high-performance embedded symmetric multiprocessor from Analog Devices featuring two Blackfin cores running at 600 MHz each. This fixed-point DSP integrates 328 kB of on-chip memory and supports a wide range of peripherals including SPI, SSP, and UART interfaces.
The device includes 48 programmable GPIO flags, 12 general-purpose 32-bit timers with PWM capability, and 24 DMA channels via dual 12-channel DMA controllers. It operates over a supply voltage range of 2.50V to 3.30V and is rated for an industrial temperature range of -40°C to +85°C.

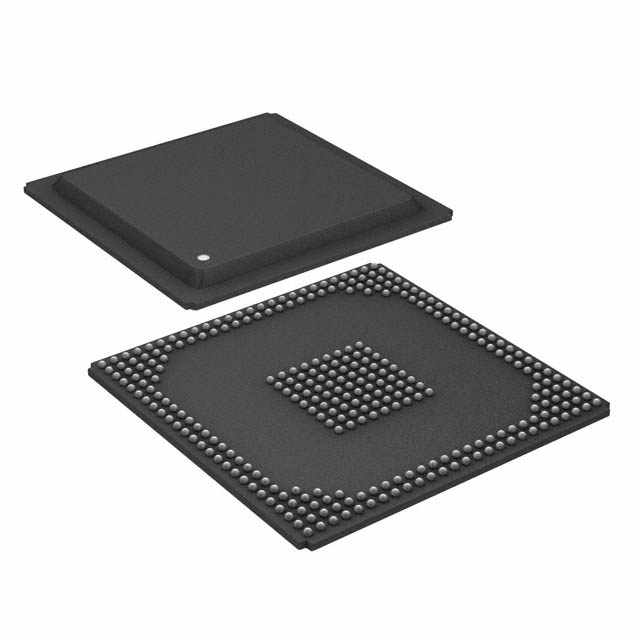

The ADSP-BF561SBB600 is offered in a 297-ball PBGA package (27x27 mm) with surface mount mounting. It is suitable for applications requiring intensive digital signal processing in embedded systems.
The ADSP-BF561SBB600 has a clock rate of 600 MHz.
The operating temperature range is -40°C to +85°C.
It uses a 297-BGA package, specifically a 297-PBGA (27x27 mm).
The database indicates RoHS3 compliance, but this is unverified.
It has two Blackfin cores.
The supply voltage is 2.50V and 3.30V, combined core and I/O.
It supports SPI, SSP, and UART interfaces.
