| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Rate | |
| Interface | |
| Mounting Type | |
| Non | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Type | |
| Voltage |
The ADSP-BF534BBCZ-4A is a fixed point digital signal processor from the Blackfin family by Analog Devices. It operates at a clock rate of 400 MHz and includes 132 kB of on-chip memory. The processor supports a variety of interfaces including CAN, SPI, SSP, TWI, and UART, making it suitable for embedded control and communication applications.
The device is designed for surface mount assembly and is available in a 182-LFBGA or 182-CSPBGA (12x12) package. It operates over a temperature range of -40°C to 85°C. The core supply voltage is 2.50 V and the I/O supply voltage is 3.30 V. External non-volatile memory is supported for program and data storage.
This DSP is well-suited for applications requiring digital signal processing combined with microcontroller-like control capabilities. The integrated CAN interface enables use in automotive and industrial networking environments, while the SPI, SSP, TWI, and UART interfaces provide flexible connectivity to peripherals and sensors.
The clock rate is 400 MHz.
The operating temperature range is -40°C to 85°C.

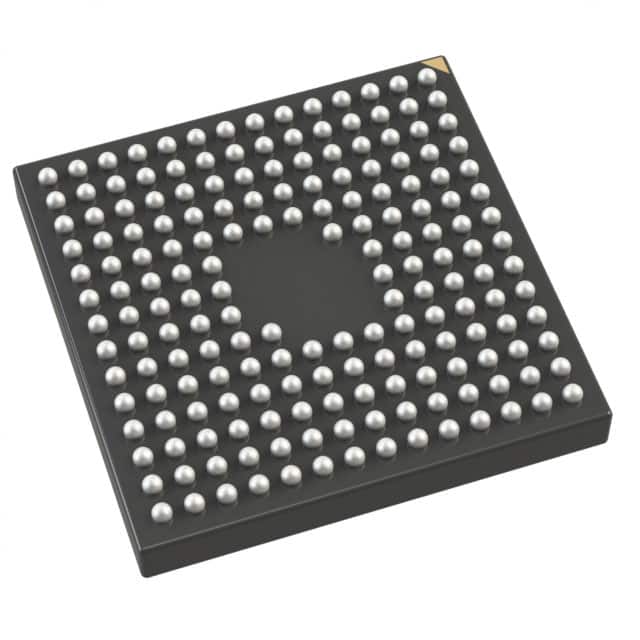

It comes in a 182-LFBGA or 182-CSPBGA (12x12) package.
It supports CAN, SPI, SSP, TWI, and UART interfaces.
The on-chip memory is 132 kB.
The core supply voltage is 2.50 V and the I/O supply voltage is 3.30 V.
RoHS compliance is indicated as RoHS3 Compliant, but this is unverified.
