| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
153 pcs
|
153 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Rate | |
| Interface | |
| Mounting Type | |
| Non | |
| On | |
| Operating Temperature | |
| Supplier Device Package | |
| Type | |
| Voltage |
The ADSP-2185MKCA-300 is a 16-bit fixed-point digital signal processor from the ADSP-2185M family by Analog Devices. It features a Harvard architecture with separate program and data memory buses, enabling single-cycle instruction execution at 75 MHz (13.3 ns cycle time) for 75 MIPS sustained performance. The device integrates 80 KB of on-chip RAM, configured as 16K words of 24-bit program memory and 16K words of 16-bit data memory, supporting dual-purpose program memory for both instruction and data storage.
Key electrical characteristics include a core supply voltage of 2.5 V and I/O supply of 3.3 V (inputs tolerate up to 3.6 V). The DSP includes a host interface, serial ports, and supports external non-volatile memory. It is designed for real-time signal processing tasks such as audio processing, telecommunications, and industrial control systems.

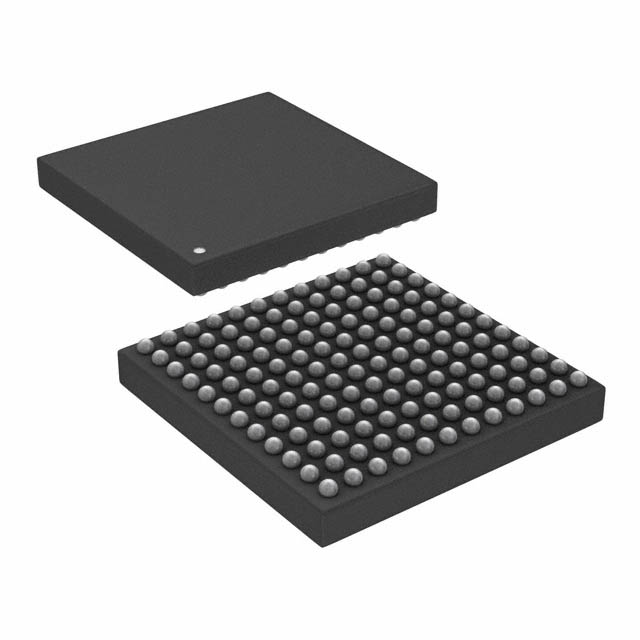

The ADSP-2185MKCA-300 is offered in a 144-LFBGA package (supplier package 144-MiniBGA, 10x10 mm) for surface mount assembly. It operates over a commercial temperature range of 0°C to 70°C. The device is RoHS3 compliant (unverified) with MSL level 1 (unlimited) and REACH unaffected status.
The core supply voltage is 2.5 V and the I/O supply voltage is 3.3 V.
It is available in a 144-LFBGA package (supplier device package 144-MiniBGA, 10x10 mm) for surface mount mounting.
The operating temperature range is 0°C to 70°C.
It is listed as RoHS3 compliant, but this is unverified and low confidence.
The clock rate is 75 MHz.
It has 80 KB of on-chip RAM, configured as 16K words of 24-bit program memory and 16K words of 16-bit data memory.
It includes a host interface and serial ports.
