| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,550 pcs
|
3550 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Configuration | |
| Data Interface | |
| Input Type | |
| Mounting Type | |
| Number of A | |
| Number of Bits | |
| Number of Channels | |
| Number of Inputs | |
| Operating Temperature | |
| Operating Voltage | |
| Ratio | |
| Reference Type | |
| Sampling Rate (Per Second) | |
| Supplier Device Package | |
| Voltage |
The ADS8372IBRHPT from Texas Instruments is a high-performance, 16-bit Analog-to-Digital Converter (ADC) with a maximum sampling rate of 600 kSPS. It utilizes a Successive Approximation Register (SAR) architecture and includes an inherent sample and hold circuit.
This ADC features a fully differential, pseudo-bipolar input range of up to ±4.2 V. It provides a high-speed CMOS serial interface supporting clock speeds up to 40 MHz. Key electrical specifications include Integral Non-Linearity (INL) of ±0.35 LSB typical and Differential Non-Linearity (DNL) of ±0.25 LSB typical. It also offers a Signal-to-Noise and Distortion Ratio (SINAD) of 93.5 dB and a Spurious-Free Dynamic Range (SFDR) of 120 dB at 1 kHz input frequency.
The device includes an onboard 4.096-V reference buffer and an onboard conversion clock, simplifying system design. It operates from a wide digital supply voltage range of 2.7 V to 5.25 V. Power consumption is efficient, rated at 110 mW at 600 kHz, with lower power modes available for reduced consumption.

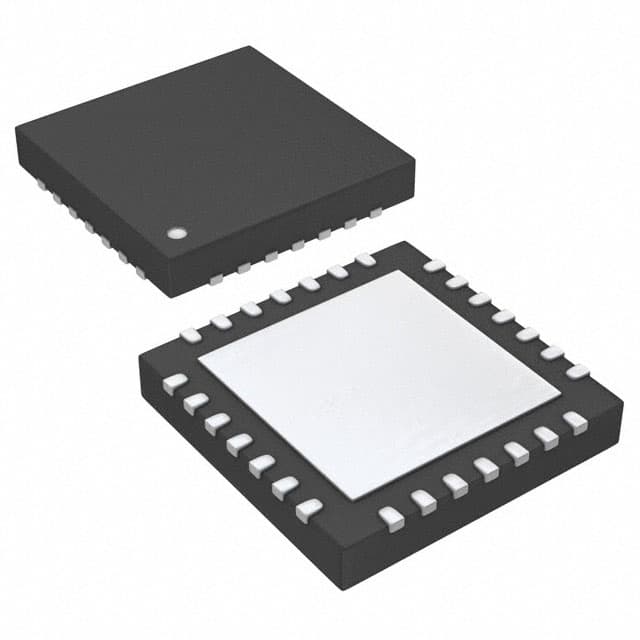

The ADS8372IBRHPT is housed in a 28-lead 6x6 mm VQFN package with an exposed pad, suitable for surface mounting. It is characterized for operation over the industrial temperature range of -40°C to 85°C. This part is pin-compatible with the 18-bit ADS8382.
| Qty | Low | High |
|---|---|---|
| 1+ | $22.65 | $22.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADS8372IBRHPT has a sample rate of 600 kSPS.
The ADS8372IBRHPT is a 16-bit ADC.
The ADS8372IBRHPT operates from 2.7 V to 5.25 V.
The ADS8372IBRHPT operates from -40°C to 85°C.
The ADS8372IBRHPT is available in a 28-VQFN Exposed Pad package (6x6 mm).
The ADS8372IBRHPT is listed as RoHS3 Compliant.
The ADS8372IBRHPT consumes 110 mW at 600 kHz, 15 mW in nap mode, and 10 µW in power-down mode.
