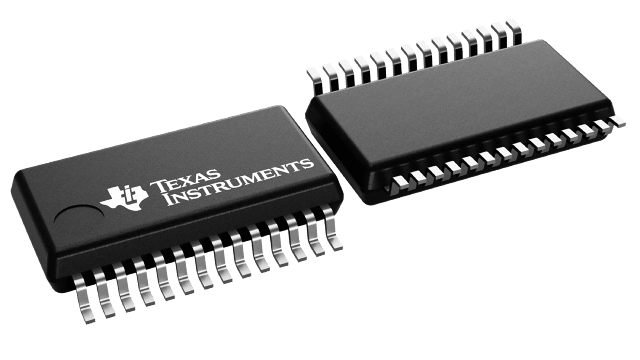

ADS805E The ADS805E is a 12-Bit, 20-MSPS Analog-to-Digital Converter from B&B Smartworx. It features a 270 MHz analog input bandwidth and a typical power consumption of 300 mW.
Mfr Part #:

ADS805E

Available from 1 distributors
Mfr Name: B&B Smartworx
B&B Smartworx
The ADS805E is a 12-Bit, 20-MSPS Analog-to-Digital Converter from B&B Smartworx. It features a 270 MHz analog input bandwidth and a typical power consumption of 300 mW.
✓ Total Stock: 2,013 pcs
$ Price Range: $20.77

ADS805E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,013 pcs
On Request
2013 pcs On Request 1 On Request On Request 07+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADS805E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Operating Temperature Range
Power Consumption
Resolution
View Similar Products (0)

ADS805E Description

Short technical summary and product information.

The ADS805E is a high-speed, 12-bit pipelined Analog-to-Digital Converter (ADC) from B&B Smartworx, capable of a 20 MSPS sample rate. This device offers a high dynamic range with a Signal-to-Noise Ratio (SNR) of 68 dB and a Spurious-Free Dynamic Range (SFDR) of 74 dB. It features a wide analog input bandwidth of 270 MHz, making it suitable for demanding applications.



The ADS805E supports flexible input voltage ranges from 2Vp-p to 5Vp-p, allowing for optimal performance depending on the application's needs. It operates within an industrial temperature range of -40°C to 85°C and has a typical power consumption of 300 mW. The converter is housed in a 28-pin SSOP package.



This ADC is designed for applications requiring high-speed data conversion and excellent signal integrity. Its features make it suitable for use in studio cameras, IF and baseband digitization, copiers, and test instrumentation.

ADS805E Quick Information

Product Type: Analog-to-Digital Converter
Canonical Name: 12-Bit, 20-MSPS Analog-to-Digital Converter
Subcategory: High-Speed ADCs (>=10 MSPS)

ADS805E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADS805E Estimated Pricing

Qty Low High
1+ $20.77 $20.77

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADS805E Features

  • 12-Bit resolution at 20 MSPS sample rate.
  • High dynamic range with 68 dB SNR.
  • Wide 270 MHz analog input bandwidth.
  • Flexible 2Vp-p to 5Vp-p input range.
  • Low power consumption at 300 mW typical.

ADS805E Applications

  • Suitable for studio cameras.
  • Used for IF and baseband digitization.
  • Applicable in copier systems.
  • Ideal for test instrumentation.

ADS805E FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum sample rate of the ADS805E?

The maximum sample rate of the ADS805E is 20 MSPS.

What is the resolution of the ADS805E analog-to-digital converter?

The ADS805E has a resolution of 12 Bits.

What is the analog input bandwidth for the ADS805E?

The analog input bandwidth for the ADS805E is 270 MHz.

What is the typical power consumption of the ADS805E?

The typical power consumption of the ADS805E is 300 mW.

What is the operating temperature range for the ADS805E?

The operating temperature range for the ADS805E is -40°C to 85°C.
