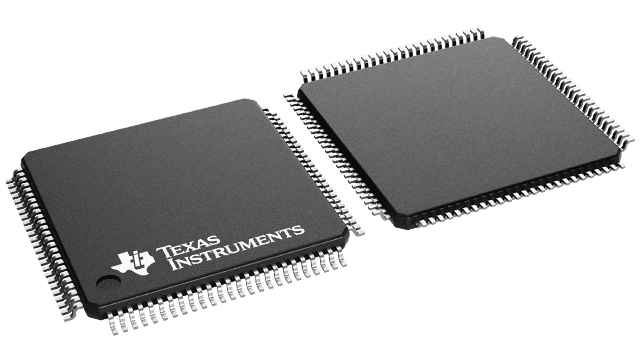

ADS7869IPZTR The ADS7869IPZTR is a 12-bit, 1 MSPS motor control front-end ADC from Texas Instruments. It features 12 fully differential input channels, three ADCs, and seven simultaneous sampling channels, in a 100-TQFP package.
Mfr Part #:

ADS7869IPZTR

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The ADS7869IPZTR is a 12-bit, 1 MSPS motor control front-end ADC from Texas Instruments. It features 12 fully differential input channels, three ADCs, and seven simultaneous sampling channels, in a 100-TQFP package.
✓ Total Stock: 1,207 pcs
$ Price Range: $22.40

ADS7869IPZTR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,207 pcs
On Request
1207 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADS7869IPZTR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Data Interface
Halogen Free
Industrial Grade
Input Type
Lead Style
Mounting Type
Number of ADCs
Number of Channels
Operating Temperature
Package Quantity
Resolution (Bits)
SVHC Present
Sampling Rate (Per Second)
Supplier Device Package
Tape & Reel
Type
Voltage
Voltage Supply Source
View Similar Products (0)

ADS7869IPZTR Description

Short technical summary and product information.

The ADS7869IPZTR is a motor control front-end analog-to-digital converter from Texas Instruments. It integrates three 12-bit ADCs with a total of seven sample-and-hold capacitors and 12 fully differential input channels. The device supports simultaneous sampling on seven channels, making it suitable for multi-phase motor control systems.



The ADC offers a flexible digital interface, including serial peripheral interface (SPI), a specialized VECANA01 serial mode, and parallel interface modes. It operates from supply voltage ranges of 2.7V to 3.6V and 4.5V to 5.5V. The operating temperature range is -40°C to 85°C.



The device is housed in a 100-TQFP package (14x14 mm) with surface mount mounting. It is RoHS and REACH compliant. The part is designed for motor control applications requiring simultaneous sampling of analog signals.

ADS7869IPZTR Quick Information

Product Type: Motor Control Front-End ADC
Series: ADS7869
Canonical Name: 12-Bit Motor Control Front-End ADC
Subcategory: Motor Control Front-End

ADS7869IPZTR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level-4-260C-72 HR
REACH Status: Compliant
Lead Free: Yes

ADS7869IPZTR Estimated Pricing

Qty Low High
1+ $22.40 $22.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADS7869IPZTR Features

  • 12-bit resolution with 1 MSPS sampling rate.
  • Seven simultaneous sampling sample-and-hold capacitors.
  • 12 fully differential input channels.
  • Flexible SPI and parallel digital interface.
  • Motor control front-end with three ADCs.

ADS7869IPZTR Applications

  • Motor control front-end applications
  • Three 1MSPS 12-bit ADCs integrated
  • Seven simultaneously-sampling S/H capacitors
  • 12 fully differential input channels
  • Flexible digital interface with SPI

ADS7869IPZTR FAQs

7 frequently asked questions generated from this part’s specifications.
What supply voltage ranges are supported by the ADS7869IPZTR?

The device supports 2.7V to 3.6V and 4.5V to 5.5V supply voltage ranges.

What is the package type and size?

The part comes in a 100-TQFP package, with a supplier device package of 100-TQFP (14x14).

What is the operating temperature range of the ADS7869IPZTR?

It operates over -40°C to 85°C.

Is the ADS7869IPZTR RoHS compliant?

Yes, it is RoHS compliant.

What is the ADC resolution and sampling rate?

It has 12-bit resolution and a sampling rate of 1 MSPS.

How many input channels and simultaneous sampling channels does it have?

It has 12 fully differential input channels and 7 simultaneous sampling channels.

What digital interfaces are available?

It supports serial and parallel interfaces, including SPI and a specialized VECANA01 serial mode.
