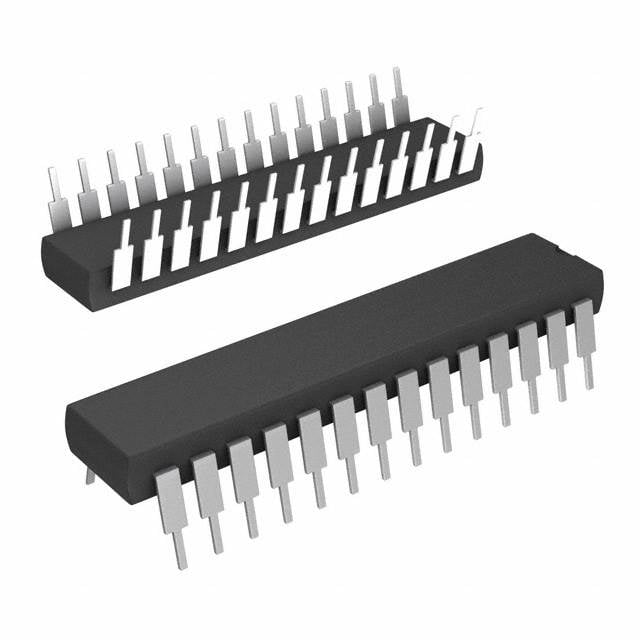

The ADS7805P is a 16-bit Analog to Digital Converter (ADC) manufactured by Burr-Brown Corp. It utilizes a Successive Approximation Register (SAR) architecture and offers a sampling rate of up to 100kSPS. This ADC operates with both analog and digital supply voltages of 5V.
Designed for data acquisition applications, the ADS7805P features a single-ended input and a parallel data interface. It is specified for an operating temperature range of -25°C to 85°C. The device comes in a 28-DIP (0.300", 7.62mm) package and is designed for through-hole mounting.
Key electrical specifications include a 16-bit resolution and a 1:1 ratio for Sample-and-Hold to ADC. The reference type can be either external or internal, providing flexibility in system design. The ADS7805P is suitable for various embedded systems requiring accurate analog-to-digital conversion.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.95 | $5.95 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ADS7805P requires a 5V supply for both analog and digital sections.
100kSPS.
16 bits.
28-DIP (0.300", 7.62mm) through hole package.
-25°C to 85°C.
Parallel data interface.
Successive approximation register (SAR).
