Mfr Part #:

ADS7800AH

Name: ADS7800AH
Brand: Texas Instruments
SKU: ADS7800AH

Mfr Name: Texas Instruments

Description:

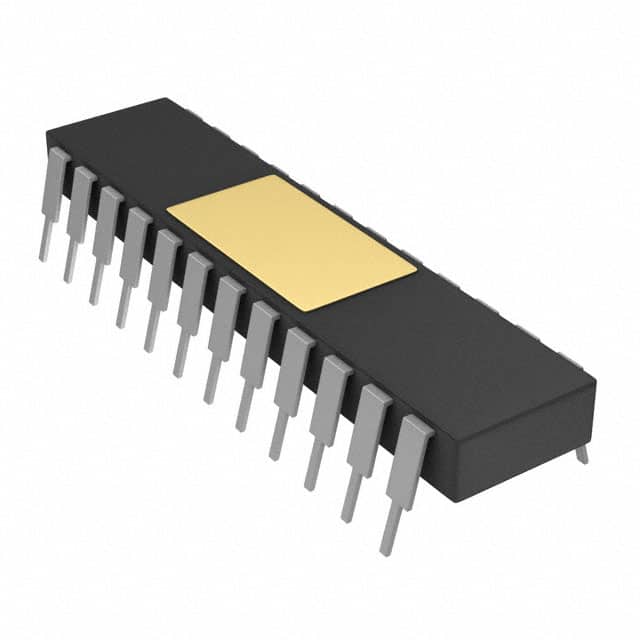

IC ADC 12BIT SAR 24CDIP

Stock on Request

ADS7800AH Description

Short technical summary and product information.

IC ADC 12BIT SAR 24CDIP

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

ADS7800BH

Texas Instruments

IC ADC 12BIT SAR 24CDIP

Category	Analog to Digital Converters (ADC)
Manufacturer Name	Texas Instruments
Architecture	SAR
Configuration	S/H-ADC
Data Interface	Parallel
Input Type	Single Ended
Mounting Type	Through Hole
Number of A	1
Number of Bits	12
Number of Inputs	1
Operating Temperature	-40°C ~ 85°C
Ratio	1:1
Reference Type	Internal
Sampling Rate (Per Second)	333k
Supplier Device Package	24-CDIP
Voltage	5V
