| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,305 pcs
|
4305 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Features | |
| Input Type | |
| Interface | |
| Operating Temperature | |
| Power Consumption | |
| Resolution | |
| Tape & Reel |

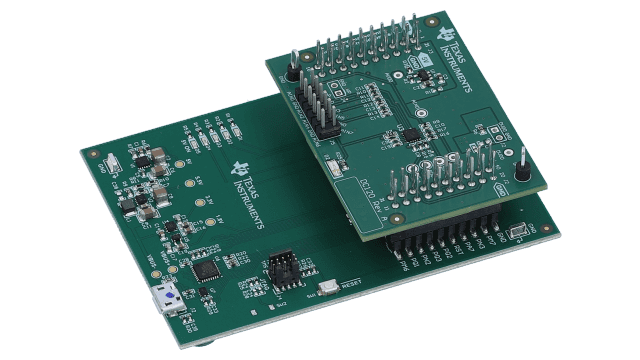

The Texas Instruments ADS7038 is a high-performance, 12-bit Analog-to-Digital Converter (ADC) designed for various data acquisition applications. This device offers 8 input channels that can be configured as analog inputs, digital inputs, or digital outputs, providing flexibility for system design. It boasts a maximum sample rate of 1 MSPS and utilizes a Successive Approximation Register (SAR) architecture.
The ADS7038 features an enhanced SPI digital interface capable of high-speed operation up to 60 MHz, ensuring efficient data transfer. It includes integrated features such as a comparator, GPIOs for I/O expansion, and an oscillator. The device operates with analog supply voltages ranging from 2.35V to 5.5V and digital supply voltages from 1.65V to 5.5V, making it suitable for a wide range of power supply configurations.
Packaged in a compact 3mm x 3mm WQFN package, the ADS7038 is ideal for space-constrained applications. Its operating temperature range is -40°C to 125°C, ensuring reliable performance in demanding environments. Additional features include CRC for data read/write operations and programmable averaging filters for signal processing.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
12 bits.
1000 kSPS.
8 single-ended channels.
SPI.
-40°C to 125°C.
WQFN, 3mm x 3mm.
2.35 V to 5.5 V.
