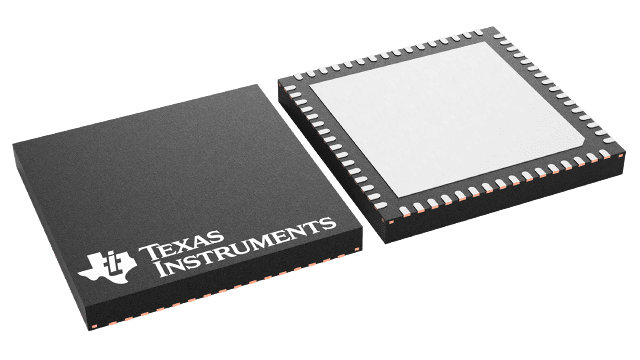

ADS6445MRGCTEP The ADS6445MRGCTEP is a quad-channel, 14-bit, 125-MSPS analog-to-digital converter from Texas Instruments. It features pipelined architecture, differential inputs, and serial LVDS data outputs.
Mfr Part #:

ADS6445MRGCTEP

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The ADS6445MRGCTEP is a quad-channel, 14-bit, 125-MSPS analog-to-digital converter from Texas Instruments. It features pipelined architecture, differential inputs, and serial LVDS data outputs.
✓ Total Stock: 5,107 pcs
$ Price Range: $193.91

ADS6445MRGCTEP Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,107 pcs
On Request
2107 pcs On Request 1 On Request On Request 24+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADS6445MRGCTEP Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Configuration
Data Interface
Features
Input Type
Mounting Type
Number of A
Number of Bits
Number of Inputs
Number of Pins
Operating Temperature
Package Quantity
Ratio
Reference Type
Sampling Rate (Per Second)
Supplier Device Package
Voltage
View Similar Products (0)

ADS6445MRGCTEP Description

Short technical summary and product information.

The ADS6445MRGCTEP is a quad-channel, 14-bit, 125-MSPS analog-to-digital converter (ADC) from Texas Instruments, part of the ADS6445-EP enhanced product family. It uses a pipelined architecture and provides simultaneous sampling on all four channels.



Key specifications include a 3 V to 3.6 V supply voltage, differential inputs, and a serial LVDS data interface with a 2-wire output scheme to reduce data rate. The device includes a 3.5 dB coarse gain and programmable fine gain up to 6 dB in 1 dB steps for optimizing SFDR/SNR trade-off. Internal and external reference options are supported.



The device is housed in a 64-pin VQFN package (9 mm × 9 mm) with an exposed pad for thermal management. It is surface mount and rated for -55°C to 125°C operating temperature. RoHS3 compliant and REACH unaffected. Moisture sensitivity level is 3 with 260°C peak reflow.



Suitable for high-speed data acquisition systems, medical imaging, communications, and test equipment requiring multi-channel simultaneous sampling.

ADS6445MRGCTEP Quick Information

Product Type: Analog to Digital Converter (ADC)
Series: ADS6445-EP
Canonical Name: ADS6445MRGCTEP Quad-Channel, 14-Bit, 125-MSPS Analog-to-Digital Converter (ADC) - Enhanced-Product
Subcategory: High-Speed ADC

ADS6445MRGCTEP Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 3, 260°C, 168 hours
REACH Status: REACH Unaffected

ADS6445MRGCTEP Estimated Pricing

Qty Low High
1+ $193.91 $193.91

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADS6445MRGCTEP Features

  • 14-bit resolution with no missing codes.
  • 125 MSPS maximum sampling rate.
  • Quad-channel simultaneous sampling.
  • Serial LVDS data outputs.
  • 3.5 dB coarse gain option.

ADS6445MRGCTEP Applications

  • Multi-channel data acquisition systems.
  • Medical imaging equipment.
  • Communications receivers.
  • Test and measurement instruments.
  • Radar and sonar signal processing.

ADS6445MRGCTEP FAQs

7 frequently asked questions generated from this part’s specifications.
What is the supply voltage range?

3 V to 3.6 V.

What package does the ADS6445MRGCTEP come in?

64-VFQFN Exposed Pad (64-VQFN 9x9 mm).

What is the operating temperature range?

-55°C to 125°C.

Is the ADS6445MRGCTEP RoHS compliant?

Yes, RoHS3 compliant.

What is the resolution and sampling rate?

14-bit resolution, 125 MSPS sampling rate.

How many channels does it have?

4 channels (quad).

What is the data interface?

Serial LVDS.
