| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
904 pcs
|
904 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Configuration | |
| Data Interface | |
| Features | |
| Input Type | |
| Mounting Type | |
| Number of A | |
| Number of Bits | |
| Number of Inputs | |
| Operating Temperature | |
| Ratio | |
| Reference Type | |
| SVHC Present | |
| Sampling Rate (Per Second) | |
| Supplier Device Package | |
| Voltage |
The ADS6443IRGCR is a high-performance 14-bit analog-to-digital converter (ADC) manufactured by Texas Instruments. It offers a sampling rate of 80 million samples per second (MSPS) and integrates four independent ADC channels with differential inputs for superior noise immunity. The device employs a pipelined architecture and supports both external and internal voltage reference options.
This ADC uses an LVDS serial data interface to reduce pin count and simplify board layout, and its simultaneous sampling capability makes it well-suited for multi-channel data acquisition systems where phase alignment between channels is critical. The converter operates from a 3V to 3.6V analog and digital supply, and it is specified over the full industrial temperature range of -40°C to +85°C.

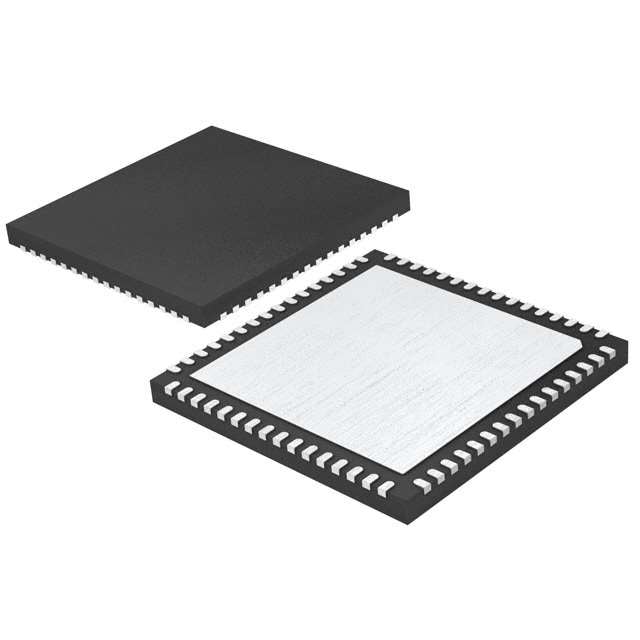

The ADS6443IRGCR is housed in a compact 64-VFQFN exposed pad package (64-VQFN, 9x9 mm) for surface mount assembly, providing excellent thermal performance. It is ideal for demanding applications in communications, medical imaging, and industrial instrumentation.
The ADS6443IRGCR has a resolution of 14 bits and a sampling rate of 80 MSPS.
It has 4 input channels, all differential.
The operating temperature range is -40°C to +85°C.
It is offered in a 64-VFQFN Exposed Pad package (64-VQFN, 9x9 mm) for surface mount.
Yes, the device features simultaneous sampling across its four input channels.
The data interface is LVDS serial.
It uses a pipelined architecture.
