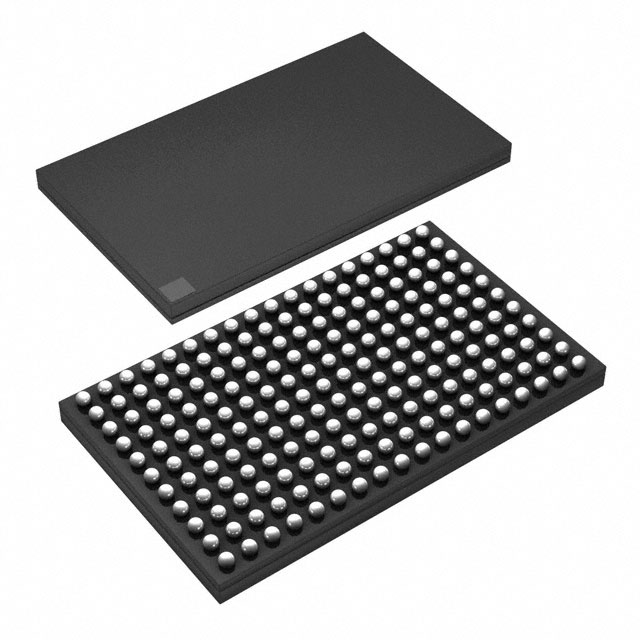

ADS52J90ZZE The ADS52J90ZZE is a 14-bit, 16-channel SAR ADC from Texas Instruments. It supports sampling rates up to 65 MSPS in 14-bit mode and features JESD204B and Serial LVDS interfaces.
Mfr Part #:

ADS52J90ZZE

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The ADS52J90ZZE is a 14-bit, 16-channel SAR ADC from Texas Instruments. It supports sampling rates up to 65 MSPS in 14-bit mode and features JESD204B and Serial LVDS interfaces.
✓ Total Stock: 1,900 pcs
$ Price Range: $168.32

ADS52J90ZZE Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,540 pcs
On Request
1540 pcs On Request 1 On Request On Request On Request On Request On Request
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
360 pcs
On Request
360 pcs On Request 1 On Request On Request 22+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADS52J90ZZE Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Configuration
Data Interface
Features
Input Type
Mounting Type
Number of A
Number of Bits
Number of Inputs
Operating Temperature
Reference Type
Sampling Rate (Per Second)
Supplier Device Package
Supply Voltage
Voltage
View Similar Products (0)

ADS52J90ZZE Description

Short technical summary and product information.

The ADS52J90ZZE is a 14-bit, 16-channel successive approximation register (SAR) analog-to-digital converter (ADC) from Texas Instruments. It offers programmable resolution modes: 10-bit (100 MSPS), 12-bit (80 MSPS), and 14-bit (65 MSPS). The device features JESD204B and Serial LVDS data interfaces, a 70 MHz analog input bandwidth, and a 2 Vpp differential input range. Typical signal-to-noise ratio (SNR) is 73.5 dB in 14-bit mode, and spurious-free dynamic range (SFDR) is 91.8 dB. Power consumption is 656 mW typical at 65 MSPS in 14-bit mode, with a per-channel power of 41 mW at 100 MSPS in 10-bit mode. The ADC operates from 1.2 V and 1.8 V supplies and is specified over the -40°C to 85°C temperature range. It is housed in a 198-NFBGA (9x15 mm) surface-mount package. The device is Pb-Free and RoHS compliant.

ADS52J90ZZE Quick Information

Product Type: Analog-to-Digital Converter (ADC)
Series: ADS52J90
Canonical Name: ADS52J90ZZE - Texas Instruments 14-Bit 16-Channel SAR ADC
Subcategory: High-Speed ADC

ADS52J90ZZE Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

ADS52J90ZZE Estimated Pricing

Qty Low High
1+ $168.32 $168.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADS52J90ZZE Features

  • 14-bit resolution with programmable modes.
  • Sampling rate up to 65 MSPS.
  • 16 configurable input channels.
  • JESD204B and Serial LVDS interfaces.
  • Low power consumption of 656 mW.

ADS52J90ZZE Applications

  • Medical imaging and ultrasound.
  • Radar and communication systems.
  • Multichannel data acquisition.
  • Portable instrumentation.

ADS52J90ZZE FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the ADS52J90ZZE?

The ADS52J90ZZE requires 1.2 V and 1.8 V supplies, with ranges of 1.15V~1.25V and 1.7V~1.9V respectively.

What is the package type of the ADS52J90ZZE?

The ADS52J90ZZE is available in a 198-NFBGA (9x15 mm) package.

What is the operating temperature range of the ADS52J90ZZE?

The operating temperature range is -40°C to 85°C.

Is the ADS52J90ZZE RoHS compliant?

The manufacturer states the device is Pb-Free and RoHS compliant, but no certificate is linked.

What is the maximum sampling rate of the ADS52J90ZZE?

The maximum sampling rate is 100 MSPS in 10-bit mode, 80 MSPS in 12-bit mode, and 65 MSPS in 14-bit mode.

How many input channels does the ADS52J90ZZE support?

The device supports 8, 16, or 32 input channels, configurable.

What data interfaces does the ADS52J90ZZE support?

It supports JESD204B and Serial LVDS interfaces.
