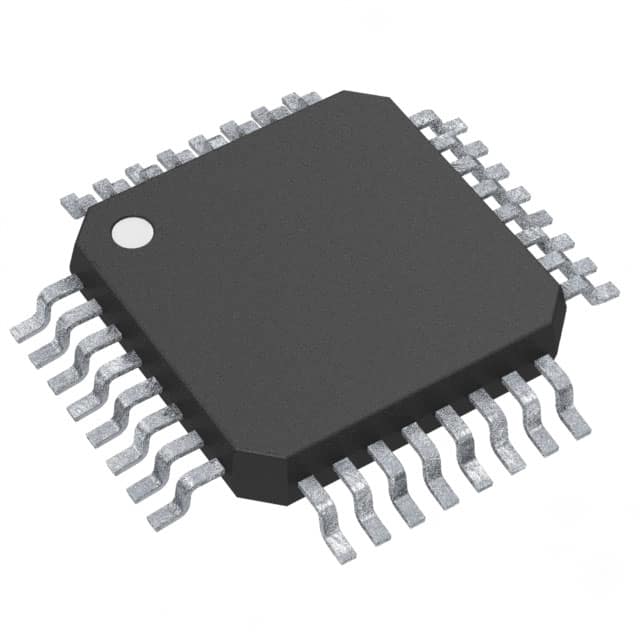

ADS131M08IPBS The Texas Instruments ADS131M08IPBS is a 24-bit, 8-channel, simultaneous-sampling, delta-sigma Analog-to-Digital Converter (ADC). It features an SPI interface and operates over a wide temperature range.
Mfr Part #:

ADS131M08IPBS

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments ADS131M08IPBS is a 24-bit, 8-channel, simultaneous-sampling, delta-sigma Analog-to-Digital Converter (ADC). It features an SPI interface and operates over a wide temperature range.
✓ Total Stock: 1,173 pcs
$ Price Range: $5.55

ADS131M08IPBS Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,173 pcs
On Request
1173 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADS131M08IPBS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Architecture
Configuration
Data Interface
Features
Input Type
Mounting Type
Number of A
Number of Bits
Number of Inputs
Operating Temperature
Power Consumption
Ratio
Reference Type
Sampling Rate (Per Second)
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

ADS131M08IPBS Description

Short technical summary and product information.

The ADS131M08IPBS from Texas Instruments is a high-performance 24-bit Analog-to-Digital Converter (ADC) designed for demanding data acquisition applications. This device features 8 channels that support simultaneous sampling, allowing for precise measurement of multiple signals concurrently.



With a delta-sigma architecture, the ADS131M08IPBS offers excellent resolution and accuracy. It communicates via an SPI interface, making integration into various embedded systems straightforward. The ADC supports a sample rate of up to 32 kSPS and features programmable gain, enabling flexibility in signal conditioning.



Designed for robust operation, the ADS131M08IPBS operates within an analog supply voltage range of 2.7V to 3.6V and a digital supply voltage range of 1.65V to 3.6V. Its operating temperature range is -40°C to 125°C, suitable for harsh environments. The device is available in a 32-pin TQFP package for surface mounting.



Key electrical characteristics include a typical power consumption of 6mW and a Signal-to-Noise Ratio (SNR) of 101dB. The input type is differential, and it supports simultaneous sampling across all 8 channels.

ADS131M08IPBS Quick Information

Product Type: Analog to Digital Converter (ADC)
Canonical Name: ADS131M08IPBS 24-Bit 8-Channel Delta-Sigma ADC
Subcategory: Precision ADCs

ADS131M08IPBS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADS131M08IPBS Estimated Pricing

Qty Low High
1+ $5.55 $5.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADS131M08IPBS Features

  • 24-bit resolution for high accuracy measurements.
  • 8 channels support simultaneous sampling.
  • SPI interface for easy system integration.
  • Wide operating temperature range: -40°C to 125°C.
  • Low power consumption at 6mW typical.

ADS131M08IPBS Applications

  • Ideal for precision data acquisition.
  • Suitable for multi-channel signal monitoring.
  • Used in industrial control systems.
  • Applicable in medical instrumentation.
  • Designed for battery-powered devices.

ADS131M08IPBS FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the ADS131M08IPBS ADC?

The ADS131M08IPBS has a resolution of 24 bits.

How many input channels does the ADS131M08IPBS offer?

The ADS131M08IPBS features 8 input channels.

What is the maximum sample rate for the ADS131M08IPBS?

The maximum sample rate for the ADS131M08IPBS is 32 kSPS.

What type of interface does the ADS131M08IPBS use?

The ADS131M08IPBS uses an SPI interface.

What is the operating temperature range of the ADS131M08IPBS?

The operating temperature range is -40°C to 125°C.

What are the supply voltage requirements for the ADS131M08IPBS?

The analog supply voltage is 2.7V to 3.6V, and the digital supply voltage is 1.65V to 3.6V.

What package type is the ADS131M08IPBS available in?

The ADS131M08IPBS is available in a 32-TQFP package.
