ADS1293CISQ/NOPB The ADS1293CISQ/NOPB is a 24-bit, 3-channel low-power analog front end (AFE) from Texas Instruments designed for biopotential measurements such as ECG.
Mfr Part #:

ADS1293CISQ/NOPB

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The ADS1293CISQ/NOPB is a 24-bit, 3-channel low-power analog front end (AFE) from Texas Instruments designed for biopotential measurements such as ECG.
✓ Total Stock: 4,636 pcs
$ Price Range: $9.83

ADS1293CISQ/NOPB Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
4,636 pcs
On Request
4636 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ADS1293CISQ/NOPB Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Mounting Type
Number of Bits
Number of Channels
Operating Temperature Range
Power Consumption
Supplier Device Package
Voltage
View Similar Products (0)

ADS1293CISQ/NOPB Description

Short technical summary and product information.

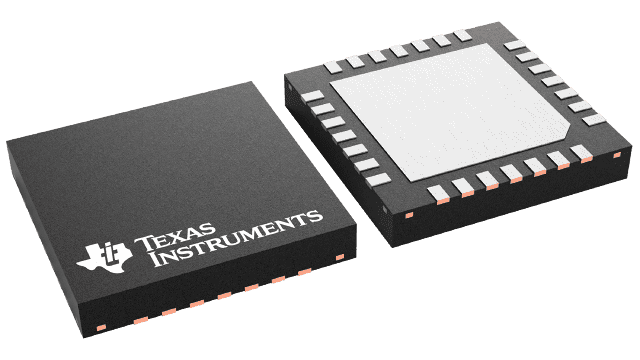

The ADS1293CISQ/NOPB is a low-power, 3-channel, 24-bit analog front-end (AFE) from Texas Instruments designed for biopotential measurements, specifically electrocardiogram (ECG) applications. It integrates three high-resolution digital ECG channels with simultaneous pace output and EMI-hardened inputs.



Key electrical specifications include a resolution of 24 bits, a maximum data rate of 25.6 ksps, and a typical input-referred noise of 7 µVpp at 40 Hz bandwidth. The device operates from an analog supply voltage of 2.7V to 5.5V and a digital I/O supply voltage of 1.65V to 3.6V. Typical power consumption is 0.3 mW per channel. The differential input voltage range is ±400 mV, and the input bias current is 175 pA typical.



The ADS1293 is housed in a 28-WFQFN exposed pad package (28-WQFN 5x5 mm) and supports surface mount mounting. It communicates via an SPI interface and operates over a temperature range of -20°C to 85°C. The device includes features such as a right-leg drive amplifier, AC and DC lead-off detection, Wilson and Goldberger terminals, and a built-in oscillator and reference.

ADS1293CISQ/NOPB Quick Information

Product Type: Analog Front End (AFE)
Canonical Name: ADS1293 Low-Power, 3-Channel, 24-Bit Analog Front-End for Biopotential Measurements
Subcategory: Biosensing AFE

ADS1293CISQ/NOPB Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ADS1293CISQ/NOPB Estimated Pricing

Qty Low High
1+ $9.83 $9.83

Estimated market price range - modelled values for guidance only, not live distributor offers.

ADS1293CISQ/NOPB Features

  • 24-bit resolution for high precision measurements.
  • 3-channel simultaneous sampling analog front end.
  • Low power consumption of 0.3 mW per channel.
  • SPI digital interface for easy integration.
  • Operating temperature range from -20°C to 85°C.

ADS1293CISQ/NOPB Applications

  • Ideal for 3-lead, 5-lead, and 6-lead ECG systems.
  • Used in portable patient monitoring equipment.
  • Suitable for sports and fitness ECG applications.
  • Designed for low-power medical instrumentation.

ADS1293CISQ/NOPB FAQs

7 frequently asked questions generated from this part’s specifications.
What is the resolution of the ADS1293CISQ/NOPB?

The ADS1293CISQ/NOPB has a resolution of 24 bits.

How many input channels does the ADS1293CISQ/NOPB have?

The ADS1293CISQ/NOPB has 3 input channels.

What is the supply voltage range for the ADS1293CISQ/NOPB?

The analog supply voltage range is 2.7V to 5.5V, and the digital I/O supply voltage range is 1.65V to 3.6V.

What is the operating temperature range of the ADS1293CISQ/NOPB?

The operating temperature range is -20°C to 85°C.

What package is the ADS1293CISQ/NOPB available in?

The ADS1293CISQ/NOPB is available in a 28-WFQFN Exposed Pad package (28-WQFN 5x5 mm).

What is the maximum data rate of the ADS1293CISQ/NOPB?

The maximum data rate is 25.6 ksps.

What interface does the ADS1293CISQ/NOPB use?

The ADS1293CISQ/NOPB uses an SPI interface.
